Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5180GSSGF6 |
| MOQ: | 1 Piece |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |

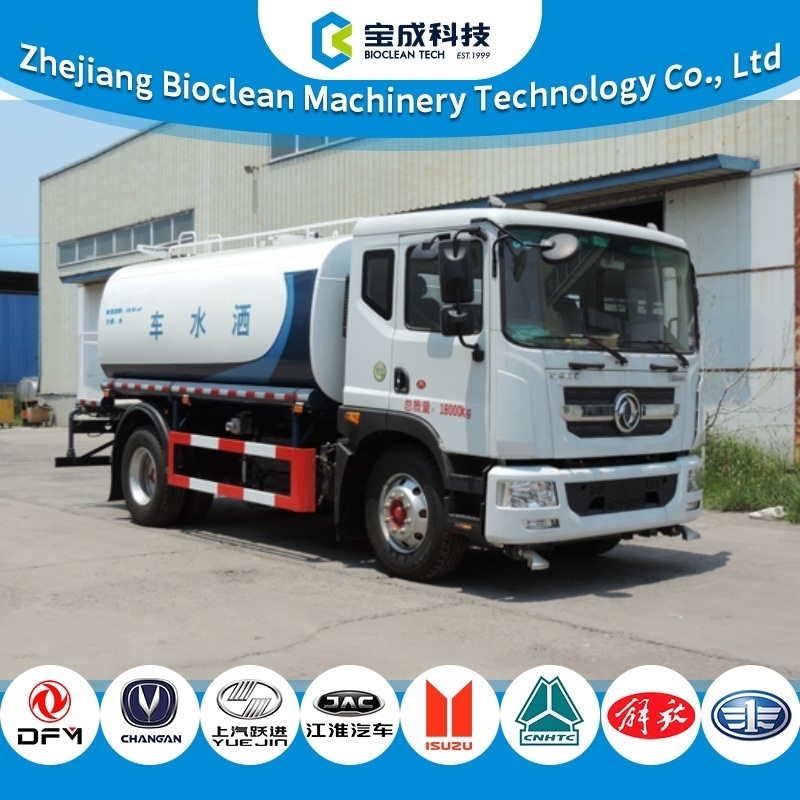

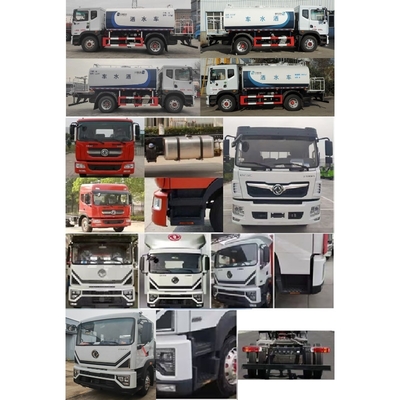

18tons 11m³ water tank water spray spraying tanker sprayer truck
Diesel‑Powered 18 T Sprinkler Truck (18 000 kg GVW, 11 020 kg Payload / 10 955 kg Net)
Chassis & Dimensions
Wheelbase: 3 950 mm
GVW: 18 000 kg | Rated Payload: 11 020 kg (10 955 kg net)
Water Tank & Spray System
Total/Effective Capacity: 11.50 m³ / 10.95 m³
Tank Size (L × W × H): 4 200 × 2 470 × 1 630 mm
Special Equipment: road‑spray and landscaping nozzle assemblies
Optional rear platform‑mounted mist cannon and arrow‑indicator lamp

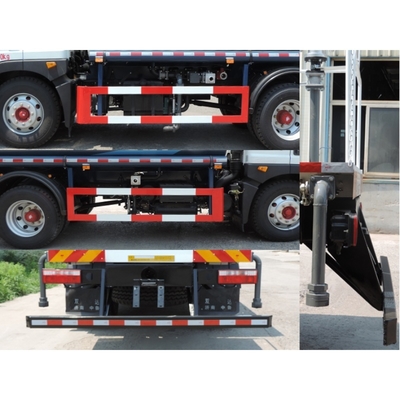

Safety & Protection
Side & Rear Guards: Q235B steel, bolt‑on to chassis
Rear Guard Section: 60 × 120 mm; 465 mm ground clearance
Brake System
ABS & ASR‑24V‑4S/4M
Optional Accessories
Fuel tank, battery box, urea tank, air reservoirs, muffler (left/right mount)
New‑style front grille, headlamps, bumper, mirrors; choice to omit front fog lamps
Ideal for export‑market street cleaning, dust control and urban greening applications.
Parameters:
| Item | ZBJ5180GSSGF6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 7550×2520×3200(mm) |
| Chassis | EQ1185LJ9CDE |
| Engine | CY4SK761/YCS04200-68/D4.5NS6B220 |
| Curb Weight | 6850kg |
| Rated Loading | 11020,10955kg |
| Total Mass | 18000kg |
| Front/Rear Overhang | 1260mm/2340mm |
| Tyre size | 295/80R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR |
|
|
