Mist Cannon Truck
Created with Pixso.

9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis

9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis

Brand Name: Bioclean
Model Number: ZBJ5160TDYEQ6A
MOQ: 1
Price: 4580-5435USD
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5,000 units per year
Detail Information
Place of Origin:
NingBo
Certification:
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Chassis:
EQ1165LJ9CDE
Engine Rated Power:
162/220
Curb Weight:
8470(Kg)
Rated Loading:
8550(Kg)
Total Mass:
16200(Kg)
Max.Speed:
105(km/h)
Water Tank Dimensions:
2800×2450×1720
Water Tank Capacity Of The Tank:
8.77m³
Fan Power:
20kW
Pump Material:
Stainless Steel Vertical Centrifugal Pump
Fuel:
Diesel
Drive Wheel:
4×2
Condition:
New
Specification:
8250× 2550× 3800(mm)
Packaging Details:
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability:
5,000 units per year
Highlight:

9m3 Truck Mounted Mist Cannon

,

Dust Suppression Truck Mounted Mist Cannon

,

EQ1165LJ9CDE Chassis Dust Suppression Truck

Product Description
ODM 9m³ Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon Truck
Product Specifications
Attribute Value
Chassis EQ1165LJ9CDE
Engine Rated Power 162/220
Curb Weight 8470 (Kg)
Rated Loading 8550 (Kg)
Total Mass 16200 (Kg)
Max. Speed 105 (km/h)
Water Tank Dimensions 2800×2450×1720
Water Tank Capacity 8.77m³
Fan Power 20kW
Pump Material Stainless steel vertical centrifugal pump
Fuel Diesel
Drive Wheel 4×2
Condition New
Specification 8250×2550×3800 (mm)
Product Description

This ODM 9m³ Diesel Water Spray Fog Cannon Truck is designed for effective dust and haze control in industrial environments. The system features a high-capacity water tank and powerful spray system for optimal dust suppression.

Key Features
  • Total Mass: 16.2 tons with rated loading capacity of 8550kg
  • Large water tank capacity: 8.77 cubic meters
  • Dimensions: 2800×2450×1720mm (L×W×H)
  • 3950mm wheelbase chassis for stability
  • Durable stainless steel vertical centrifugal pump
  • Powerful 20kW fan for effective mist dispersion
Safety Features

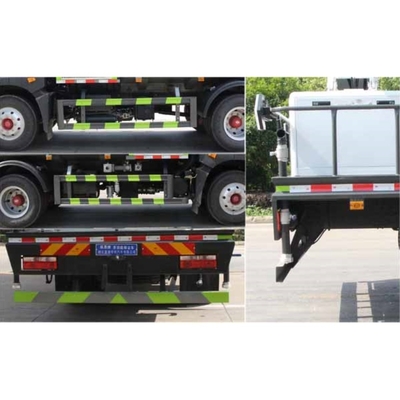

  • Side and rear guards constructed from Q235 carbon steel with bolted connections
  • Rear guard dimensions: 120×50mm, positioned 490mm above ground
  • Optional ABS system available (J ABS or ABS/ASR-24V-4S/4M)
Configuration Options
  • Speed limiter (89km/h)
  • Cab options available with chassis
  • Flexible fuel tank positioning
  • Multiple spray system styles
  • Optional front electronic cannon (adds 500mm to length)
Technical Parameters
Energy type: Diesel
Dimensions: 8250×2550×3800 (mm)
Chassis: EQ1165LJ9CDE
Engine: D45TCIF1
Curb Weight: 8550 (Kg)
Total Mass: 16200 (Kg)
Maximum Speed: 105 (km/h)
Water Tank Capacity: 8.77m³
Fan Power: 15kw
Pump Material: Stainless steel multi-stage centrifugal pump
Pump Power: 5kw

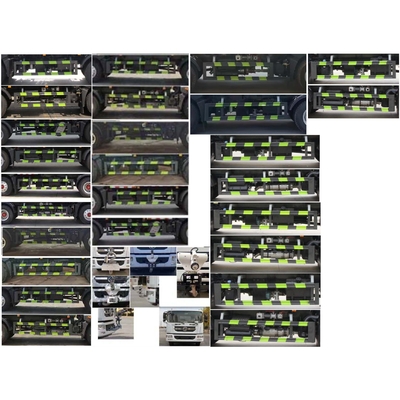

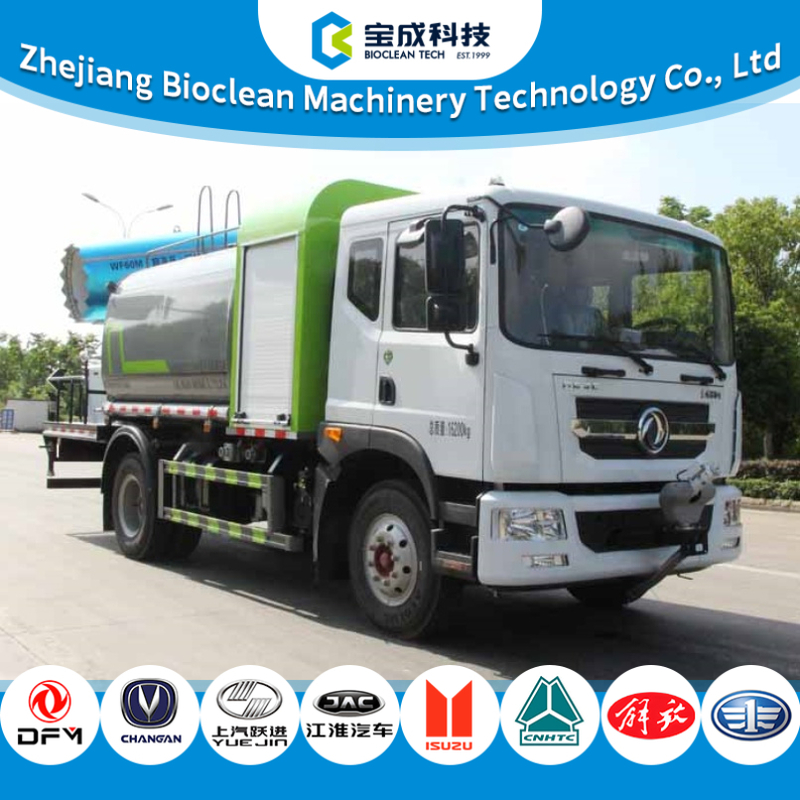

Product Images
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 0
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 1
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 2
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 3
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 4
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 5
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 6
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 7
9m3 Diesel Truck Mounted Mist Cannon For Dust Suppression EQ1165LJ9CDE Chassis 8
