Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5160TDYC6 |
| MOQ: | 1 |
| Price: | 5855-7695USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5,000 units per year |

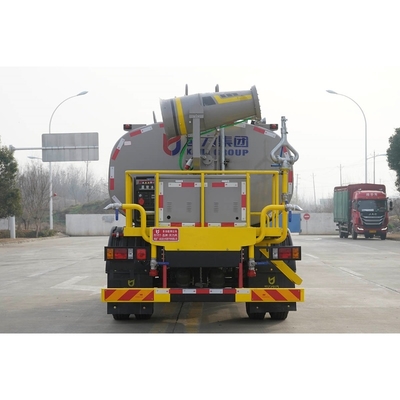

16T 12000L Diesel Water Spray Fog Cannon Dust Suppression Mist Cannon TruckTotal Mass: 18 tons
Load: 9325kg, 8105kg, 8305kg
Tank Volume: 10.3 cubic meters
4500mm wheelbase (standard):
Weight: 8480kg; width 2450mm, height 3115mm.
Can add front water cannon (780mm front part); cab look with chassis.
Lengths: 9275mm, 9245mm, 10055mm, 10025mm (varies with front/rear parts).
Angles: 13° approach, 10° departure. Tank: 4400×2400×1420mm, total 10.3, effective 9.8 cubic meters.
5000mm wheelbase:
Weight: 9700kg or 9500kg; load 8105kg or 8305kg.
Width 2480mm, height 3465mm, length 10580mm.
Angles: 12° approach, 9° departure. Tank: 3920×2400×1420mm, total 9.5, effective 9.1 cubic meters.
Side guards: Aluminum (standard) or Q235B (option), bolted.
Rear guards: Q355B (standard) or Q235A (option), bolted. Size: 240×65mm (standard) or 150×100mm (option). Height: 420mm (standard) or 420/475mm (option)
Speed limiter (89km/h).
Looks: middle beam left, front duckbill, rear sprinklers, no right rear water gun, front cover, right layout.
Chassis setup.
| Item | ZBJ5160TDYC6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 8210× 2500, 2550× 3100(mm) |
| Chassis | CDW1164H501EFB |
| Engine | YCS04200-68 |
| Curb Weight | 9885(Kg) |
| Total Mass | 16200(Kg) |
| Maximum Speed | 89(km/h) |
| Water Tank Capacity | 9m³ |
| Fan Power | 20kw |
| Pump Material | Stainless steel multi-stage centrifugal pump |
| Pump Power | 6kw |
