Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5181TDYDHE6D |
| MOQ: | 1 |
| Price: | 3995-6985 USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 5,000 units per year |
18T 10000L Heavy-Duty Water Spray Fog Cannon Dust Suppression Mist Cannon Truck
Total Mass: 18 tons
Loading Capacity: 9325kg, 8105kg, 8305kg
Tank Volume: 10.3 cubic meters
4500mm wheelbase chassis (standard):
Weight: 8480kg; width 2450mm, height 3115mm.
Can add front water cannon (780mm front overhang); cab look chosen with chassis.
Length options: 9275mm (front 1430mm, rear 2410mm, rear extension 935mm), 9245mm (front 1400mm, rear 2410mm, rear extension 935mm), 10055mm (front 1430mm, rear 2410mm, front 780mm, rear 935mm), 10025mm (front 1400mm, rear 2410mm, front 780mm, rear 935mm).
Angle: 13° approach, 10° departure. Tank: 4400×2400×1420mm, total 10.3 cubic meters, effective 9.8 cubic meters.
5000mm wheelbase chassis:
Weight: 9700kg or 9500kg; load 8105kg or 8305kg.
Width 2480mm, height 3465mm, length 10580mm; front 1430mm, rear 2970mm, rear extension 1180mm.
Angle: 12° approach, 9° departure. Tank: 3920×2400×1420mm, total 9.5 cubic meters, effective 9.1 cubic meters.
Side guards: Aluminum (standard) or Q235B (optional), bolted.
Rear guards: Q355B (standard) or Q235A (optional), bolted. Size: 240×65mm (standard) or 150×100mm (optional). Height: 420mm (standard) or 420/475mm (optional).
Speed limiter (89km/h).
Looks: middle beam left, front duckbill position, rear sprinklers, no right rear water gun, front cover, right layout.
Uses
| Item | ZBJ5181TDYDHE6D |
| Energy type | Diesel |
| Dimension(L x W x H) | 10580× 2480× 3465(mm) |
| Chassis | DFH1180EX8 |
| Engine | DDi47E260-60 |
| Curb Weight | 9325,8105,8305(Kg) |
| Total Mass | 18000(Kg) |
| Maximum Speed | 89,98(km/h) |
| Water Tank Capacity | 9m³ |
| Fan Power | 15kw |
| Pump Material | Stainless steel multi-stage centrifugal pump |
| Pump Power | 5kw |

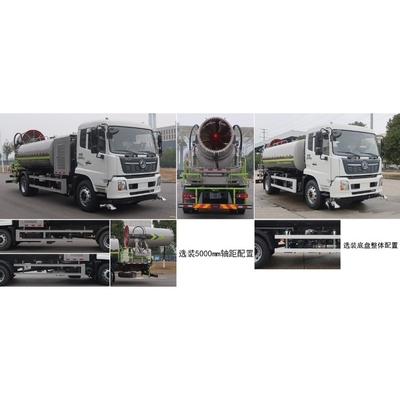

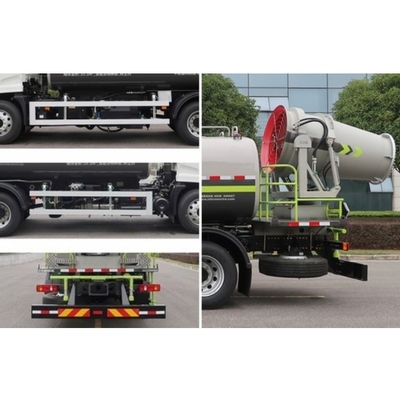

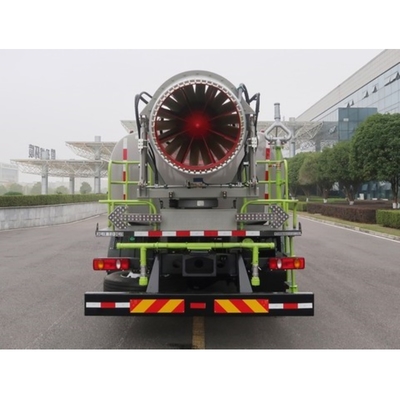

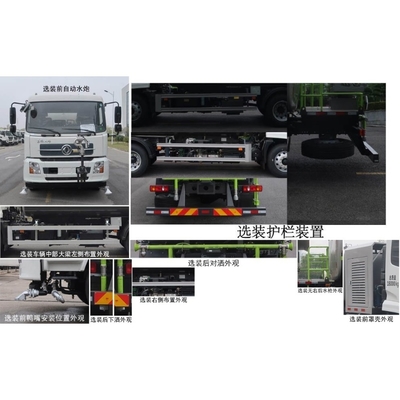

Actual photos
|
|
