Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5031CTYC |
| MOQ: | 1 Piece |
| Price: | 2895-5690 usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
Open Type High Speed Trash Bin Truck Economic Customized Waste Collection Truck
Total Weight: 3495kg
Loading Capacity: 1540kg
Curb Weight: Includes fire extinguisher, tools, etc. Does not include spare tire.
Cargo Bed & Rails:
- Standard rail weight: 383.4kg; Optional rail
-free weight: 373.4kg. - Material: Q235.
- Thickness: Bottom and rear side plates 2mm; front and main side plates 1.5mm.
Use: Collects and transports barreled garbage with the carriage and hydraulic lift tailgate.
Tailgate: Stowed horizontal length 185mm; weight 195kg.
Cargo Bed Height: 600mm with optional rails; 360mm without rails.
Engine: Comes with DAM16KLQ and LJ4A15Q6 engines (with chassis).
Fuel consumption: 9.1L/100km for both. ABS System: Model APG3550500A;
Optional Features:
- Cab appearance (with chassis).
- ETC on-board device.
parameters
| Item | ZBJ5031CTYC |
| Energy Type | Gasoline (92#) |
| Dimension | 5700x1900x2020 |
| Carriage Internal Dim. | 3750X1840X360 |
| Chassis | EO1035SJ160C |
| Engine | DAM16KLO |
| Curb Weight | 1825 kg |
| Rated Loading | 1540 kg |
| Total Mass | 3495 kg |
| Max.Speed | 100 km/h |
| App./Dep.Angle | 21°/17° |
| Front/Rear Overhang | 1190/1510 kg |
| Axle Load | 1300/2195 kg |
| Rear Hyd.Tailboard | Rated load 500kg,capable of loading 18,standard 240L trash cans |

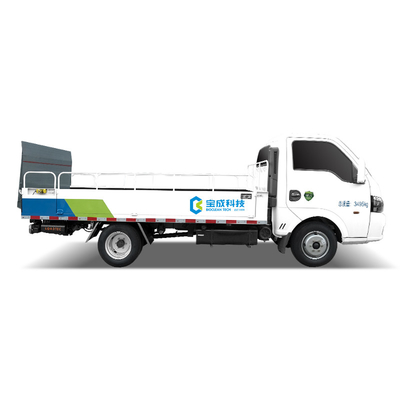

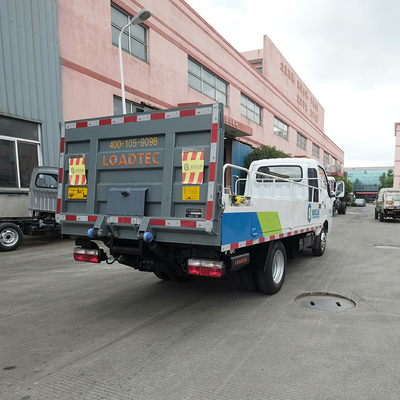

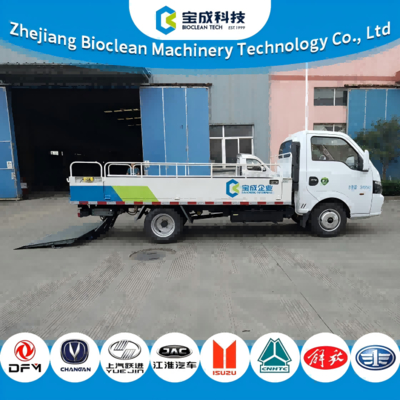

Actual photos
|
|
