New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency

New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency

Brand Name:	Bioclean
Model Number:	ZBJ5031CTYBEV
MOQ:	1 Piece
Price:	3550-6895 usd
Payment Terms:	T/T
Supply Ability:	5,000 units per year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

Certification:

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L X W X H):

4905×1610×1935mm

Chassis:

SC1031XND64BEV

Drive Motor:

TZ180XSIN101

Rated/peak Power:

30/60 KW

Battery Capacity:

41.86KWh

Chassis Total Capacity:

1600kg

Load Capacity:

1110Kg

Approaching/Departure Angle:

40°/19°

Front/Rear Overhang:

720mm/1295mm

Maximium Load:

2840kg

Carriage Volume:

10 Standard 240L Trash Cans

Front/rear Overhang Lenght:

720/1485 Mm

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

5,000 units per year

Highlight:

New Energy Garbage Bin Truck

High Efficiency Garbage Bin Truck

High Efficiency Trash Can Truck

Product Description

New Energy Container Garbage Bin Truck Small Pure Electric High Efficiency

Total Weight: 2840kg

Loading Capacity: 1110kg

Curb Weight: Includes fire extinguisher, tools; no spare tire.

Cargo Rails: Standard 290kg; optional rail-free 282.6kg. Material: Q235. Thickness: Bottom/rear plates 2mm; front/main side plates 1.5mm.

Use: Collects/transports barreled garbage via dustbin, lifting tailgate, hydraulic devices.

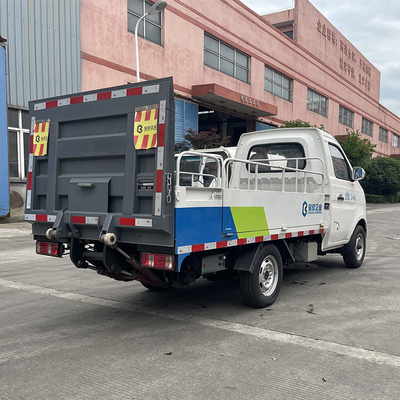

Tailgate: Stowed length 191mm; weight 195kg.

Cargo Bed Height: 600mm with optional rails; 360mm without.

Battery: Single (lithium iron phosphate): model CB320 (CATL), 3.22V/125Ah. Pack: 334.88V/125Ah (CATL).

Motor: Permanent magnet synchronous. Model TZ180XSIN101; controller KTZ33X26S330. Rated/peak power: 30kW/60kW.

ABS: Model YF8 (Wuhan Yuanfeng), four-channel.

Options: Controller position, rim styles (with chassis); no front fog lights; ETC device.

parameters:

Item	ZBJ5031CTYBEV
Energy Type	Pure Electric
Dimension	4905x1610x1935 mm
Chassis	SC1031XND64BEV
Driving Moto	TZ180XSIN101
Rated Power	30/60 KW
Battery Cpacity	41.86 Kwh
Curb Weight	1600 kg
Rated Loading	1110 kg
Total Mass	2840 kg
Max.Speed	80 km/h
App./Dep.Angle	40°/19°
Front/Rear Overhang	720/1485 mm
Dedicated Device	Can load 10 standard 240L trash cans
