15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F

Name: 15m3 6tons Mobile Waste Compactor Mobile Refuse Compactor LYM-13000F
Brand: Zhejiang Bioclean Machinery Technology Co., Ltd
SKU: LYM-13000F
Availability: InStock

Brand Name:	Bioclean
Model Number:	LYM-13000F
MOQ:	1 Piece
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	2000unit/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

External Dimensions(LxWxH):

6010×2500×2470mm

Architectural Requirements(LxWxH):

9000×4000×4000mm

Rated Pressure:

24Mpa

Maximum Compressive Force:

340kN

Box Volume:

15m³

Maximum Loading Weight:

>9t

Push Stroke:

1250mm

Push Speed:

3.2m/min

Voltage:

220v/380v

Power:

5.5kW

Overall Weight:

Hopper Capacity:

3.5m³

Name:

Mobile Refuse Compactor

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

2000unit/Year

Highlight:

6tons Mobile Waste Compactor

15m3 Mobile Refuse Compactor

6tons Mobile Refuse Compactor

Product Description

15m³ 6tons Mobile Waste Compactor LYM-13000F

Key Specifications

Attribute	Value
External dimensions (L×W×H)	6010×2500×2470mm
Architectural requirements (L×W×H)	9000×4000×4000mm
Rated pressure	24Mpa
Maximum compressive force	340kN
Box volume	15m³
Maximum loading weight	>9t
Push stroke	1250mm
Push speed	3.2m/min
Voltage	220v/380v
Power	5.5kW
Overall weight	6t
Hopper capacity	3.5m³

Product Overview

The 15m³ 6tons mobile garbage compactor is an integrated sanitation solution that combines waste collection, compression, and temporary storage in a single unit. Its innovative design eliminates the need for additional transfer vehicles by merging compaction components with the storage bin.

Ideal Applications

Large residential communities and town centers with high daily waste volumes
Commercial districts and industrial parks generating substantial waste
Short-distance transfers from smaller collection stations
Rural and suburban routes requiring efficient multi-point collection

System Components

The mobile garbage compactor consists of five primary systems:

Garbage loading container: Integrated design with box shell, compression storage bin (2/3 capacity), and gravity-operated rear door secured by dual hydraulic cylinders
Collection device: Hopper-style with dual tilting cylinders for waste transfer; optional barrel-turning mechanism available
Compression unit: Features foldable frame and compression cylinder with pushing plate for efficient waste transfer

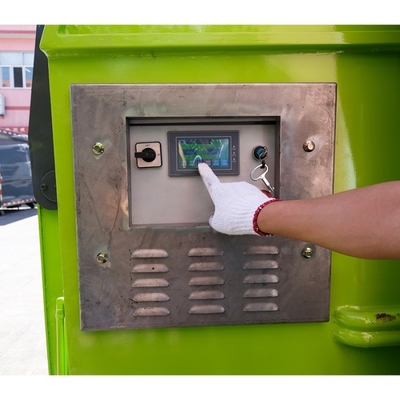

Electrical control: Touchscreen PLC interface with wired remote handle for operational flexibility
Hydraulic system: Precision pump-valve configuration with over-range alarm and optimized power consumption

Product Gallery
