10m3 3.5tons Truck Mobile Garbage Compactor Mobile Trash Compactor LYM-8000F

Name: 10m3 3.5tons Truck Mobile Garbage Compactor Mobile Trash Compactor LYM-8000F
Brand: Zhejiang Bioclean Machinery Technology Co., Ltd
SKU: LYM-8000F
Price: 1,600.00 USD
Availability: InStock

Brand Name:	Bioclean
Model Number:	LYM-8000F
MOQ:	1 Piece
Price:	USD 1200-2000
Payment Terms:	T/T
Supply Ability:	2000unit/Year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

Certification:

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Minimum Construction Size(LxWxH):

7800×4000×4000mm

Overall Dimensions(LxWxH):

4880×2250×2040mm

Rated Pressure Of Hydraulic System:

20Mpa

Maximum Compression Force:

230kN

Garbage Bin Capacity:

10m³

Maximum Loaded Garbage Weight:

>6t

Pushing Stroke:

1250mm

Pushing Speed:

3.2m/min

Matching Power Supply Voltage:

220v/380v

Power:

3kW

Total Weight:

3.5t

Effective Volume Of Feeding Hopper:

2.2m³

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

2000unit/Year

Highlight:

10m3 Mobile Garbage Compactor

3.5tons Mobile Garbage Compactor

3.5tons mobile trash compactor

Product Description

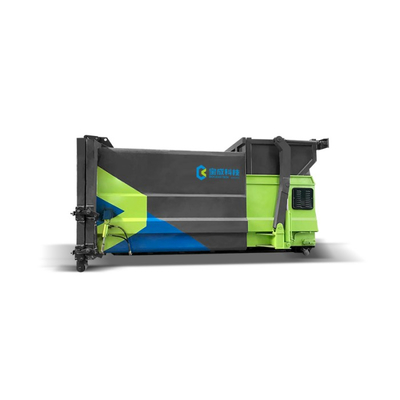

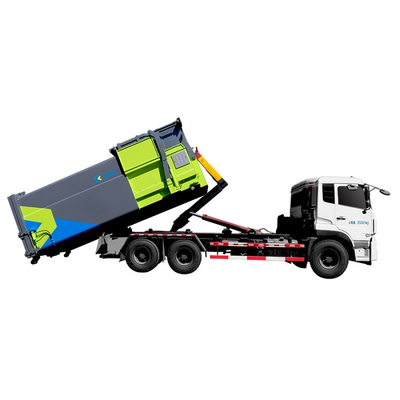

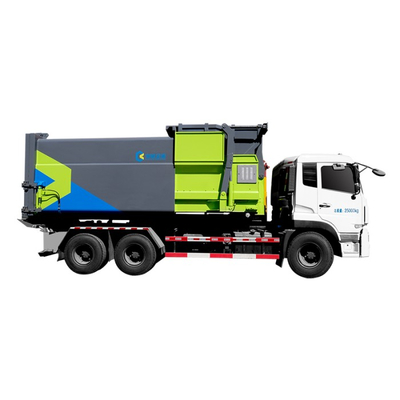

10m³ 3.5tons Truck Mobile Garbage Compactor (LYM-8000F)

Key Specifications

Attribute	Value
Minimum Construction Size (L×W×H)	7800×4000×4000mm
Overall Dimensions (L×W×H)	4880×2250×2040mm
Rated Pressure of Hydraulic System	20Mpa
Maximum Compression Force	230kN
Garbage Bin Capacity	10m³
Maximum Loaded Garbage Weight	>6t
Pushing Stroke	1250mm
Pushing Speed	3.2m/min
Matching Power Supply Voltage	220v/380v
Power	3kW
Total Weight	3.5t
Effective Volume of Feeding Hopper	2.2m³

Product Overview

The 10m³ 3.5tons mobile garbage compactor is an all-in-one sanitation solution that collects, compresses, and stores waste efficiently. Its compact integrated design combines the compaction mechanism and storage bin, eliminating the need for separate transfer vehicles.

Ideal Applications

Small communities and residential areas for daily waste management
Commercial pedestrian streets and small business districts with narrow road access
Schools and small factories with steady waste generation
Urban villages and old neighborhoods where large vehicles cannot operate

Product Components

Garbage loading container: Integrated design with box shell, compression storage bin (2/3 capacity), and gravity-operated rear door with dual hydraulic cylinder locking mechanism
Collection device: Hopper-type with dual tilting cylinders for waste transfer, optional barrel-turning mechanism available
Compression unit: Foldable frame with compression cylinder and pushing plate for efficient waste transfer
Electrical control: Touchscreen PLC interface with wired remote handle for operation
Hydraulic system: Pump-valve configuration with over-range alarm and optimized circuits for efficiency and stability

Operation Process
