Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5184ZYSE6 |
| MOQ: | 1 Piece |
| Price: | 4585-6855usd |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000/year |
18TONS OMD brand mobile trash compressed garbage compactor truck
Product Overview – 18 Ton Diesel Water Sprinkler Truck (Export Model)
Gross Vehicle Weight (GVW): 18,000 kg
Payload Range: 5,535 – 6,700 kg
Wheelbase Options: 5000 mm / 5300 mm / 5600 mm
Suspension Type: Steel leaf spring only
Tank Structure: Optional arc-shaped body, sealed cover available
Loading Systems:
No loading system
Swing arm device
Bin lifting mechanism
Tipping bucket
Fully sealed hopper
Lighting: Rear work lights (only active in work mode)
Safety Features:
Rear underrun protection (clearance 450 mm)
Side protection (Q235 material, welded + bolted)
ABS (J ABS / ASR-24V-4S/4M)
GPS-enabled tachograph
Optional ETC device
Optional speed limiter (89 km/h)
Engine Options & Fuel Consumption (L/100km):
B6.2NS6B210 – 26.3
B6.2NS6B230 – 26.1
D4.5NS6B220 – 26.6
YCS04200-68 – 26.4
CY4SK761 – 26.8
D4.0NS6B195 – 26.6
YCY30165-60 – 26.5
Suitable for: Road cleaning, sprinkling, and municipal sanitation in international markets
Parameters:
| Item | ZBJ5184ZYSE6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 8730,8980,9120,8700,8950,9090×2460×3050(mm) |
| Chassis | EQ1185LJ9CDE |
| Engine | D4.5NS6B220 |
| Weight | 18000kg |
| Rated Loading | 6700kg |
| Axle Load | 6500kg/11500kg |
| Front/Rear Overhang | 6500kg/11500kg |
| Tyre size | 95/80R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR2 |

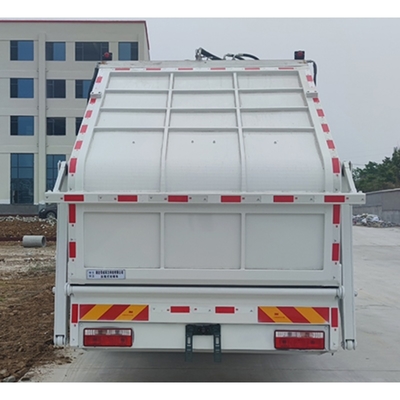

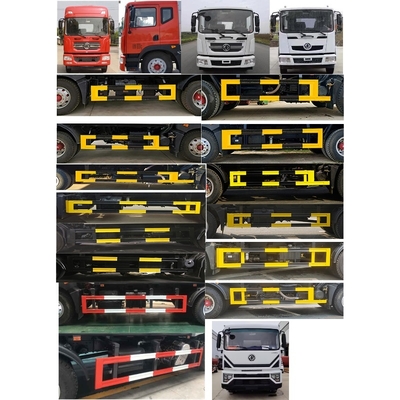

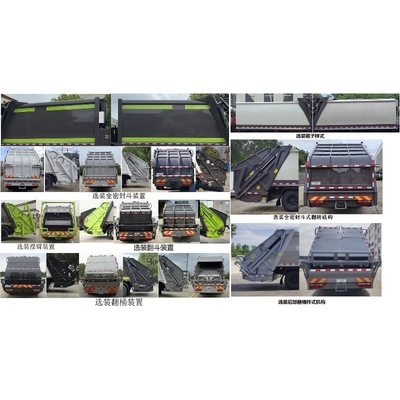

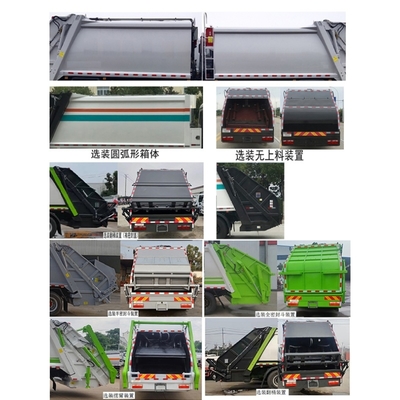

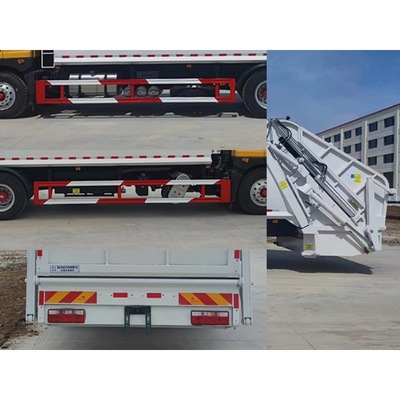

Actual photos:
|
|
