Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5180ZYSC |
| MOQ: | 1 Piece |
| Price: | 3685-7655USD |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
ZBJ5180XX 18000KG diesel mobile trash compressed garbage compactor truck
The stuffing device is located at the tail of the box body, with a built-in scraper mechanism and a lifting mechanism, which can press the garbage into the garbage bin.
The feeding mechanism is a device for loading the garbage in the trash can into the stuffing device. The feeding mechanism can load two 240L trash cans at the same time.
The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution.
Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
The sub-frame is a basic component of the superstructure of the product. It is fixed on the chassis girder through the connection seat and plays a role in fixing and supporting the superstructure.
Parameters:
| Item | ZBJ5180ZYSC |
| Energy type | Diesel |
| Dimension(L x W x H) | 8560×2500×2980(mm) |
| Chassis | DFH1180EX8 |
| Engine | D6.7NS6B230 |
| Weight | 18000(Kg) |
| Rated Loading | 7235(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1400/1030,1430/1000(mm) |
| Tyre size | 10.00R20 18PR,275/80R22.5 18PR,295/60R22.5 18PR |

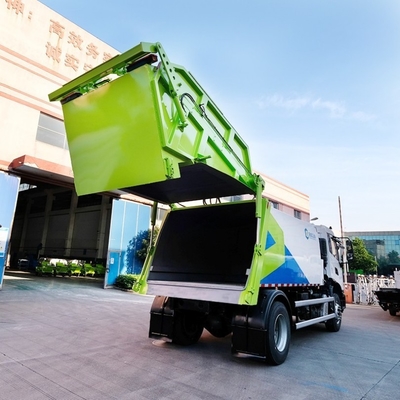

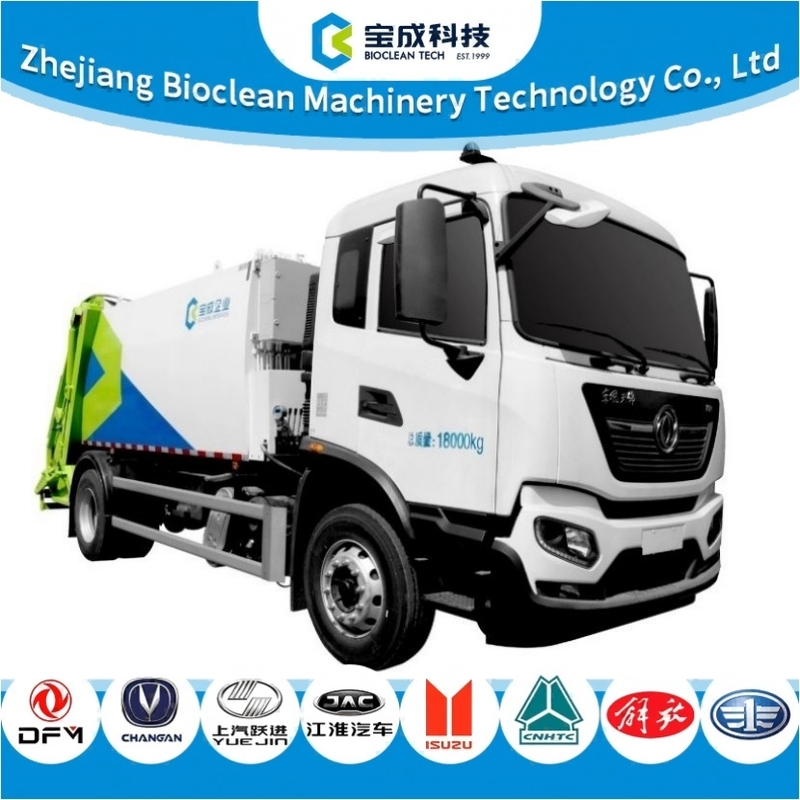

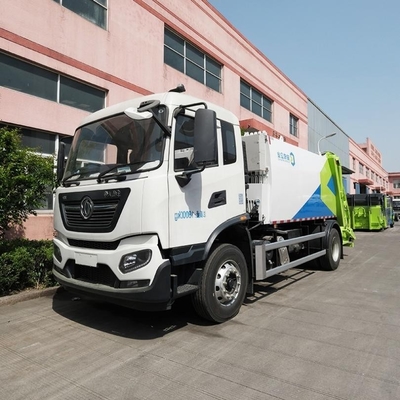

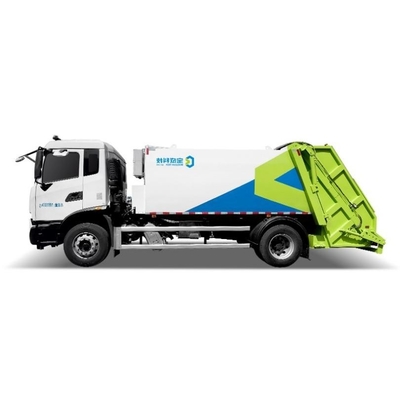

Actual photos:
|
|
