Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5071TSLC |
| MOQ: | 1 Piece |
| Price: | 5800-8500usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
| Item | ZBJ5030TSLC |
| Energy type | Gasoline (92#) |
| Dimension(L x W x H) | 5140×1825×2000 |
| Chassis | SC1031XDD65 |
| Engine | DAM16KR |
| Secondary Engine | AF10-06 |
| Curb Weight | 2200 |
| Rated Loading | 1165 |
| Total Mass | 3495 |
| Max.Speed | 100 |
| Sweeping Width | 2 |
| Sweeping Efficiency | 93 |
| Maximum Sweeping Speed | 20 |
| Maximum Inhaled Particles | 110 |
| Notes | Dustbin Volume 1.5m³ |
| Notes | Tank Volume 0.8m³ |
|
The garbage bin has an advanced structure. Made of high-quality steel, it uses a full-plate, skeleton-free design. This gives it a new look, boosts strength and rigidity, and reduces weight.
Its smooth inner layer resists corrosion, prevents garbage sticking, and eases unloading and cleaning. The bin has a 1.5 cubic meter capacity.

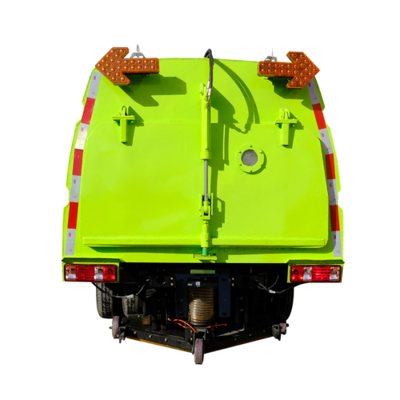

The rear door’s opening, closing, locking and tightening mechanism seals the door tightly. It locks automatically when fully closed. This mechanism is simple to make and seals reliably.
|
|
Sweeping disk: The cleaning device is equipped with automatic obstacle avoidance and automatic reset functions. When the sweeping disk comes into contact with an obstacle during operation, it will retract on its own to avoid collision. Once it has successfully moved past the obstacle, the sweeping disk will automatically return to its original working position.
This practical function can effectively prevent the cleaning device from getting damaged due to hitting obstacles. The sweeping disk has a simple and reasonable structure, making it very easy to install, use, and operate. It is suitable for a wide range of working environments, can work with high efficiency, and requires low maintenance costs in daily use.
|
|
|
Suction nozzle and fan: The suction nozzle is able to lift up and move around the pin. When it is pulled by the rear wheels and the link mechanism, it can easily handle objects that come in different sizes. It is also good at cleaning many types of garbage in an effective way, which makes it more adaptable to different jobs. What’s more, it cleans things quickly and does a good job, and this helps to make sanitation work much easier and more efficient.
The pneumatic conveying system makes use of a high-efficiency special fan together with the suction nozzle. It has very strong suction power, and it can suck up all kinds of common road garbage. This includes things like sand, small stones, and light, floating objects. The motor is directly connected to the fan— the fan impeller is put right onto the motor’s output shaft. This kind of setup simplifies the transmission mechanism a lot, and it also helps to reduce the number of possible faults that can happen.
|
|
High quality, top accessory setup: The hydraulic system comes with a stacked electromagnetic hydraulic valve group. It’s highly integrated, with parts placed neatly. This not only makes it look good but also easy to maintain.
The hydraulic and pneumatic pipelines are laid out in a really reasonable way. They are simple, clean and look nice too.
Transmission parts, hydraulic parts and electrical components all use high-quality elements and accessories. These parts are of excellent quality. They work well and can be trusted to perform reliably for a long, long time. They hardly break down, which adds to their great value in use.
|
|
|
Safe and reliable:
It comes with a voice alarm system. When it is working or unloading, this system can give out many different kinds of voice alarms and helpful prompts. This helps people know what is happening at all times.
It also has a garbage bin safety strut and a balance valve. The lifting cylinder gives the power needed to lift the garbage bin up. The balance hydraulic valve group works to stop the bin from falling down by accident. The safety strut holds the bin up firmly, which also prevents it from falling suddenly. With this double protection, it makes sure that maintenance work can be done safely and reliably, without any unexpected dangers.
|
|
Easy to maintain:
The structure is designed in a reasonable way, and all the parts are of reliable quality. The motor and fan use a direct-drive method, which helps to cut down on possible faults.
The display in the cab can show when there are faults. This makes installing the machine and keeping it maintained much easier. The hydraulic pipes and electrical pipes are arranged in a neat and orderly way. This means it is simple to find where faults are and to replace any parts that need changing.
All the parts are designed with plenty of space around them for repair work. The machine uses high-quality accessories, which makes sure the product is good in quality. This also helps to greatly reduce how often the product might have faults.
|
|
