Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5090ZYSBEV |
| MOQ: | 1 Piece |
| Price: | 4585-6855usd |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
ZBJ5090XXEV 9000KG Pure electric mobile trash compressed garbage compactor truck
The stuffing device is located at the tail of the box body, with a built-in scraper mechanism and a lifting mechanism, which can press the garbage into the garbage bin.
The feeding mechanism is a device for loading the garbage in the trash can into the stuffing device. The feeding mechanism can load two 240L trash cans at the same time.
The stuffing device is located at the tail of the box body, and it is a device for compressing and covering the loose garbage. The compaction and filling device is composed of components such as a scraper, a sliding plate and a sliding block. The sliding plate is installed in the sliding grooves on both sides of the stuffing device and can slide up and down along the sliding grooves. The scraper is installed on the sliding plate and can perform a rotating motion.
Engine: Adopt a diesel engine of a well-known brand, which has strong power.
Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
Parameters:
| Item | ZBJ5090ZYSBEV |
| Energy type | Pure electric |
| Dimension(L x W x H) | 7450×2190×2470(mm) |
| Chassis | EQ1090KACEV |
| Engine | TZ290XSZ |
| Weight | 8995(Kg) |
| Rated Loading | 1650(Kg) |
| Axle Load | 3000/5995 |
| Front/Rear Overhang | 1123/1105(mm) |
| Tyre size | 8.25R16LT 14PR,9.5R17.5 14PR |

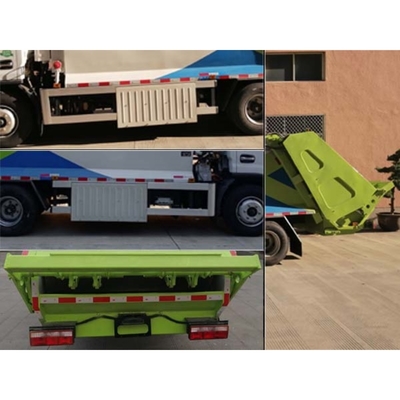

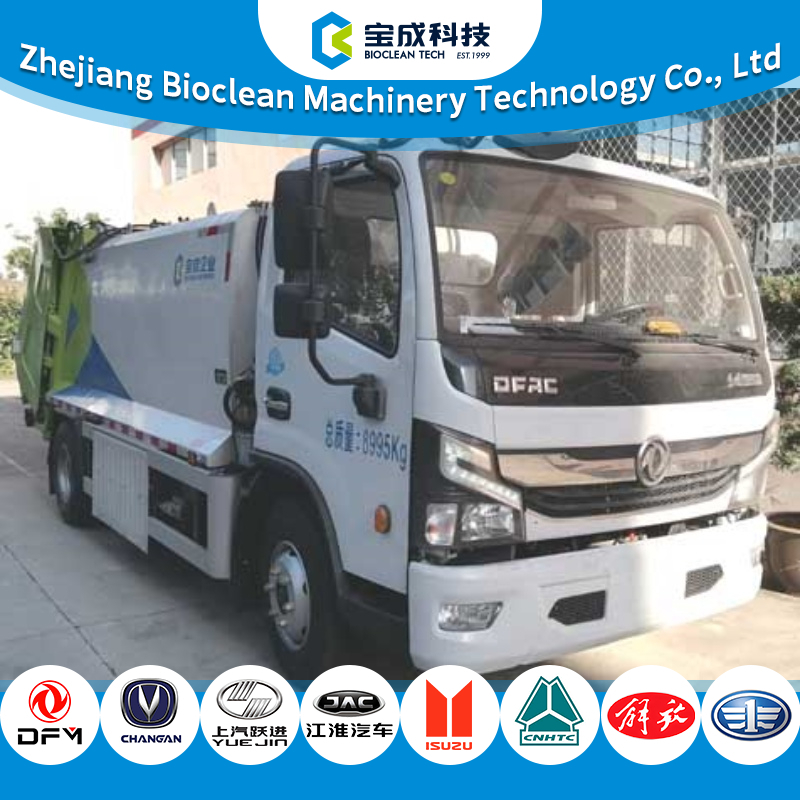

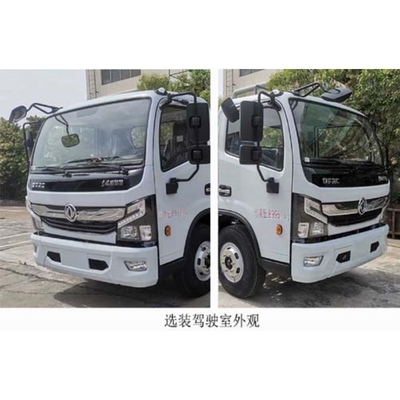

Actual photos:
|
|
