ZBJ5081XX 8200KG diesel mobile trash compressed garbage compactor truck
Product Overview – 8.3 Ton Diesel Water Sprinkler Truck (Export Model)
Gross Vehicle Weight (GVW): 8,300 kg
Wheelbase: 3360 mm
Body Function: Waste collection and unloading via garbage box & compactor
Configurations:
A (Standard): Flip bin loader
Curb weight: 5400 / 5520 kg
Payload: 2680 / 2560 kg
Length: 6915 mm; Rear overhang: 2050 mm; Rear extension: 395 mm
B (Optional): Tipping bucket
Curb weight: 5470 / 5520 kg
Payload: 2610 / 2560 kg
Length: 6550 mm; Rear overhang: 1970 mm; Rear extension: 110 mm
Optional Features: Rear covers, arms, loading mechanisms, side boxes, electrical control boxes, water trays, decorative panels, drainage heads, valves, etc.
Side Protection: Q235A, bolted
Rear Protection: Integrated into chassis (clearance 360 mm or 400 mm)
Engine Options & Fuel Consumption (L/100km):
D25TCIF1 – 14.01
D30TCIF1 – 16.19
F2.8NS6B156 – 13.90
F3.8NS6B156 – 16.20
Other Equipment: ABS, optional ETC, 80 km/h speed limiter
Applications: Ideal for compact urban sanitation and waste handling tasks
Parameters:
| Item | ZBJ5081ZYSBJBE6F |
| Energy type | Diesel |
| Dimension(L x W x H) | 6915,6550×2150×2510,2540(mm) |
| Chassis | BJ1088VEJEA-FK |
| Engine | F2.8NS6B156 |
| Weight | 8275(Kg) |
| Rated Loading | 2680,2610,2560(Kg) |
| Axle Load | 3000/5275 |
| Front/Rear Overhang | 1110/2050,1110/1970(mm) |
| Tyre size | 7.50R16LT 14PR,8.25R16LT 14PR,7.50R16 16PR |

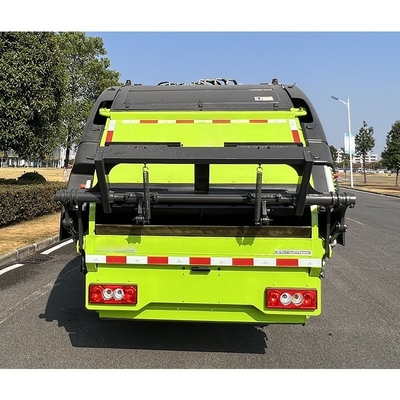

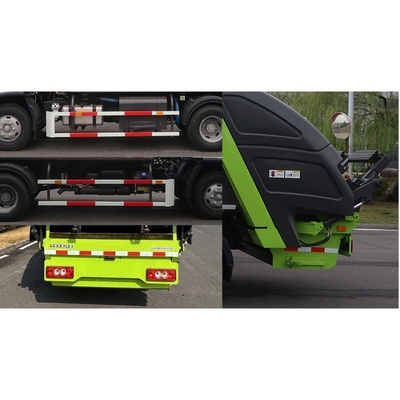

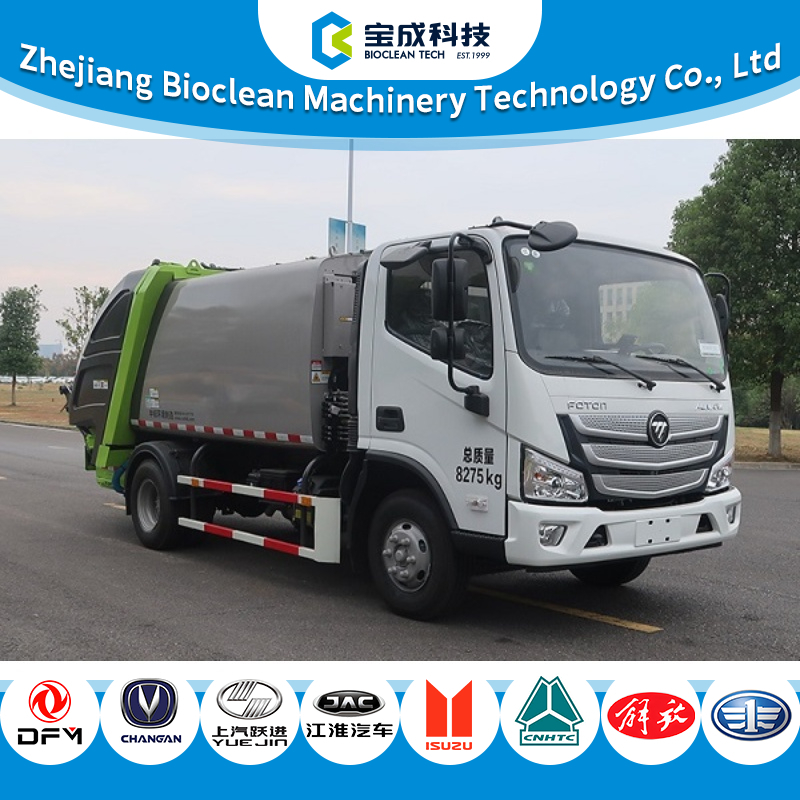

Actual photos:
|
|
