Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5180ZYSFMBEVK |
| MOQ: | 1 Piece |
| Price: | 4585-6855usd |
| Payment Terms: | T/T,L/C,D/A,D/P |
| Supply Ability: | 5000unit/year |

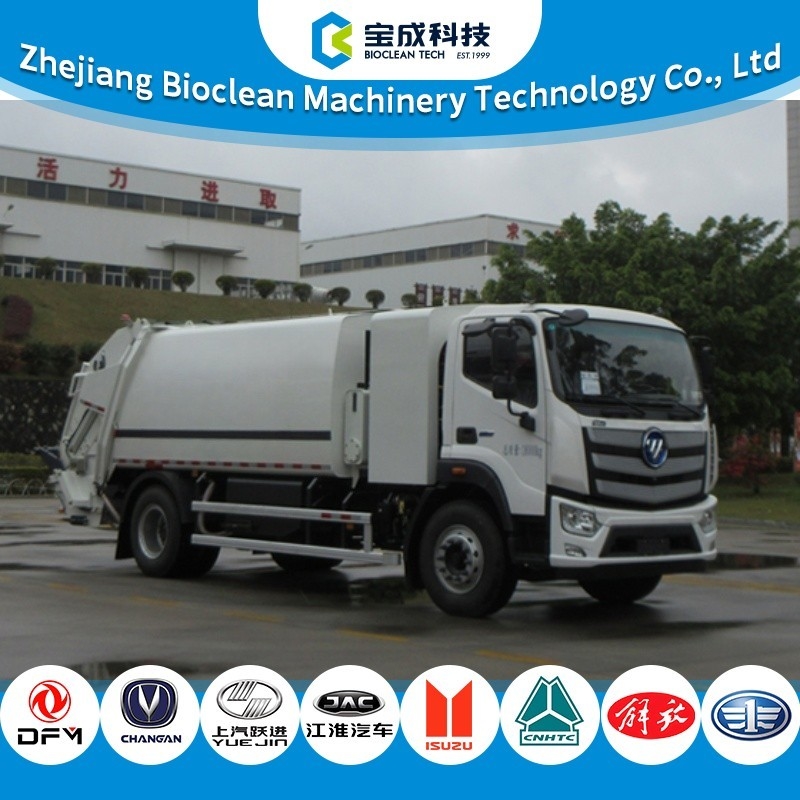

ZBJ5180XXEV 18000KG pure electric mobile trash compressed garbage compactor truck
Product Overview – 18 Ton Pure Electric Water Sprinkler Truck (Export Model)
Gross Vehicle Weight (GVW): 18,000 kg
Payload (depending on seats/config): 5965 – 6210 kg
Drive System:
Motor Type: Permanent Magnet Synchronous Motor
Model: FTTB080C
Rated Power: 80 kW
Peak Power: 160 kW
Battery Type: CB230
Configurations:
A: Flip bin loader – 9415 mm length, 305 mm rear extension
B: Tipping bucket I – 9225 mm length, 295 mm rear extension
C: Tipping bucket II – 9225 mm length, 355 mm rear extension
Key Features:
Garbage box with compactor & hydraulic loading system
Rear LED work light (operates only when parked)
Optional: RFID reader, video monitor, roof without canvas
Satellite GPS recorder, ETC-ready, ABS-E braking system
Protection:
Side: Aluminum alloy, bolted
Rear: Integrated with equipment, ground clearance 470 mm
Ideal for eco-friendly municipal sanitation and automated garbage transfer in export markets.
Parameters:
| Item | ZBJ5180ZYSFMBEVK |
| Energy type | Pure electric |
| Dimension(L x W x H) | 9415,9225×2500×2980(mm) |
| Chassis | BJ1181EVAGF-04 |
| Engine | FTTB080C |
| Weight | 18000(Kg) |
| Rated Loading | 6145,5965,6210,6030(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1270/3040,1270/2860,1270/2800(mm) |
| Tyre size | 10.00R20 18PR,11R22.5 18PR,295/80R22.5 18PR |

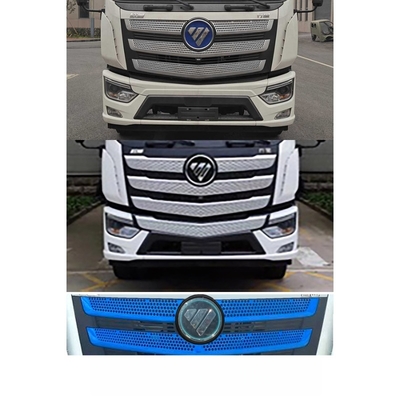

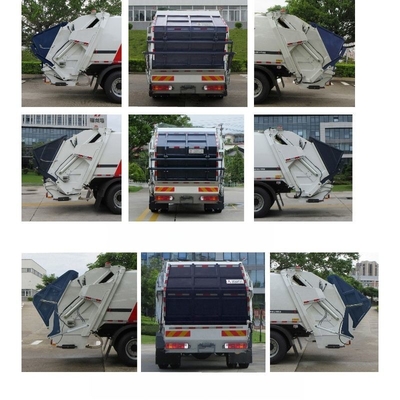

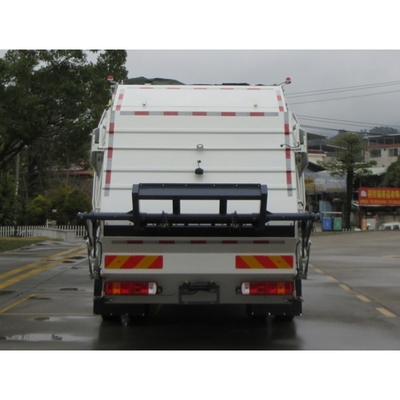

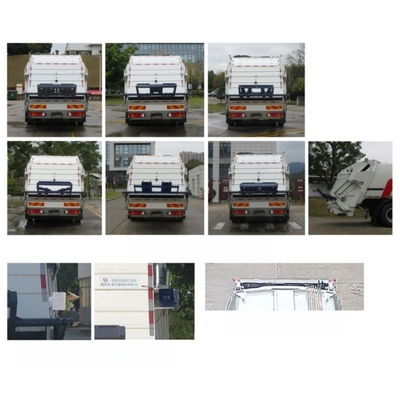

Actual photos:
|
|
