Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5181ZYSCBEV |
| MOQ: | 1 Piece |
| Price: | USD3900-81000 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |

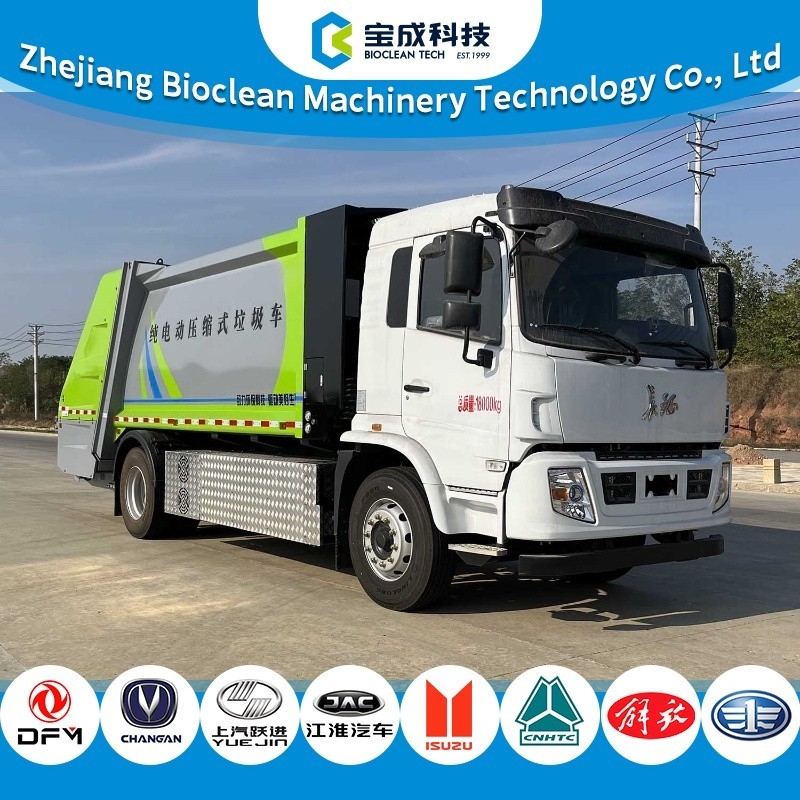

ZBJ5181XXEV 18000KG pure electric mobile trash compressed garbage compactor truck
18-Ton Pure Electric Sanitation Truck
(Waste Compactor Collection Vehicle)
This 18-ton pure electric sanitation truck is designed for efficient garbage collection, compression, and transportation. It is equipped with a LiFePO₄ battery system and a TZ342XSYTC32 permanent magnet motor (rated 120 kW, peak 185 kW). The vehicle supports multiple loading structures, including barrel-lifting and shovel-type feeding mechanisms, with varied structural options for hydraulic tanks, sewage boxes, and other components.
Payload Capacity: 6855–7155 kg
Curb Weight: Up to 10,950 kg
Speed Limit: 90 km/h
ABS Model: ABS-E 4S/4M, CM4XL-4S/4M
Safety Features: Satellite-positioning tachograph, optional ETC, 360° camera system
Rear Protection Clearance: 440 mm
This vehicle complies with national sales regulations and is available for nationwide operation in China. Ideal for municipal waste management in urban and suburban settings.
Parameters:
| Item | ZBJ5181ZYSCBEV |
| Energy type | Pure electric |
| Dimension(L x W x H) | 9280,9085,8885×2550×3280(mm) |
| Chassis | CZ1180SU10EVP |
| Engine | TZ327XSLGC01 |
| Weight | 18000(Kg) |
| Rated Loading | 5650(Kg) |
| Axle Load | 4360/7635 |
| Front/Rear Overhang | 1500/2885(mm) |
| Tyre size | 295/80R22.5 16PR,295/80R22.5 18PR |

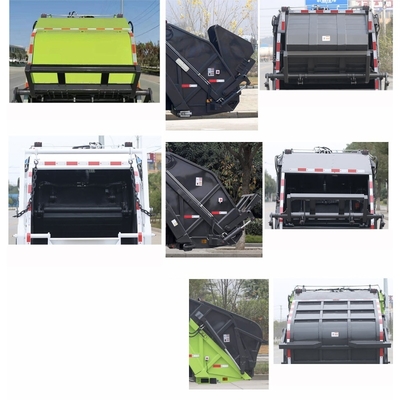

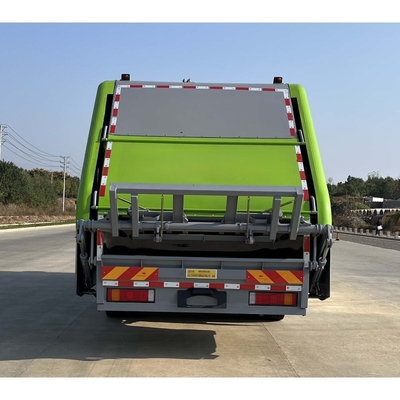

Actual photos:
|
|
