Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5122ZYSDHE6 |
| MOQ: | 1 Piece |
| Price: | 3685-7655USD |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |

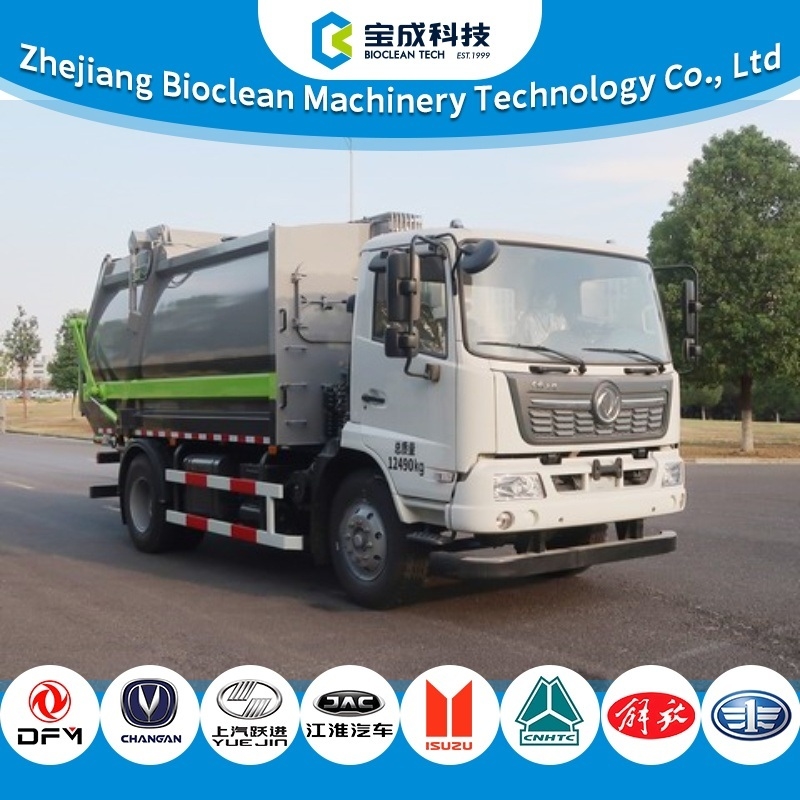

ZBJ5122XX 12500KG diesel mobile trash compressed garbage compactor truck
12.5-Ton Diesel Sanitation Truck
(Garbage Compactor Collection Vehicle)
This 12.5-ton diesel-powered sanitation truck is engineered for urban waste collection, compaction, and discharge. Built on a 3800 mm wheelbase chassis, it integrates a garbage tank and filling mechanism for efficient loading and hydraulic ejection of waste. The vehicle offers a rated payload of 3000–3065 kg, depending on seating capacity.
Overall Length: 7540–7555 mm
Curb Weight: 9295 kg
Engine Options: D4.0NS6B185, D4.0NS6B195, DDi47E210-60
Fuel Consumption: 20.8–21.03 L/100 km
Safety Features:
Q235A or aluminum side protection (bolted),
Rear guard (140×80 mm section, 420 mm clearance),
ABS (Model: 3631010-C2000),
GPS with satellite positioning
Optional ETC onboard unit
Multiple appearance options and rear bucket mechanisms are available without affecting vehicle specs. Ideal for municipal waste operations.
Parameters:
| Item | ZBJ5122ZYSDHE6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 7555,7540×2520×3335(mm) |
| Chassis | DFH1120B4 |
| Engine | D4.0NS6B185 |
| Weight | 12490(Kg) |
| Rated Loading | 3000,3065(Kg) |
| Axle Load | 4440/8050 |
| Front/Rear Overhang | 1445/2150,1430/2150(mm) |
| Tyre size | 8.25R20 14PR,8.25R20 16PR,9.00R20 14PR,9.00R20 16PR,10R22.5 14PR,10R22.5 16PR,255/70R22.5 |

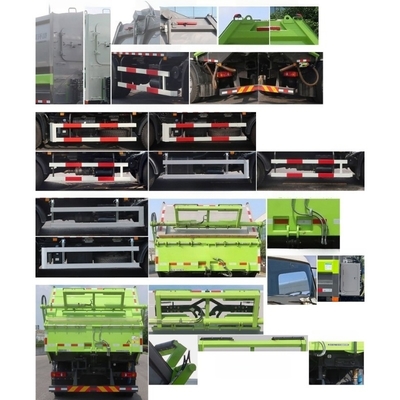

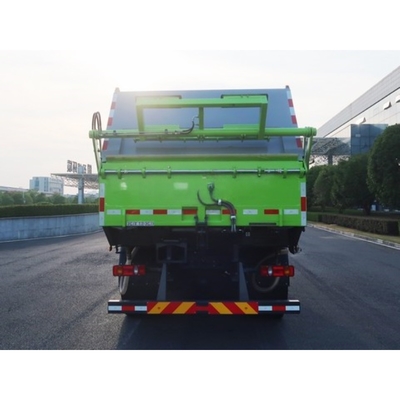

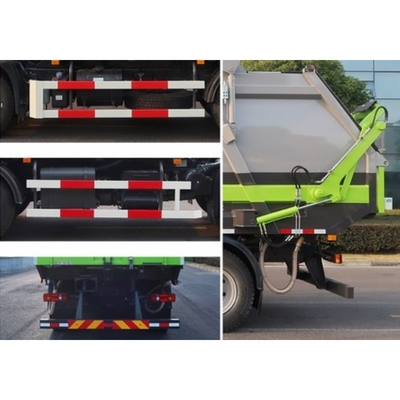

Actual photos:
|
|
