Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5180ZYSDFBEVM |
| MOQ: | 1 Piece |
| Price: | USD3800-9060 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |

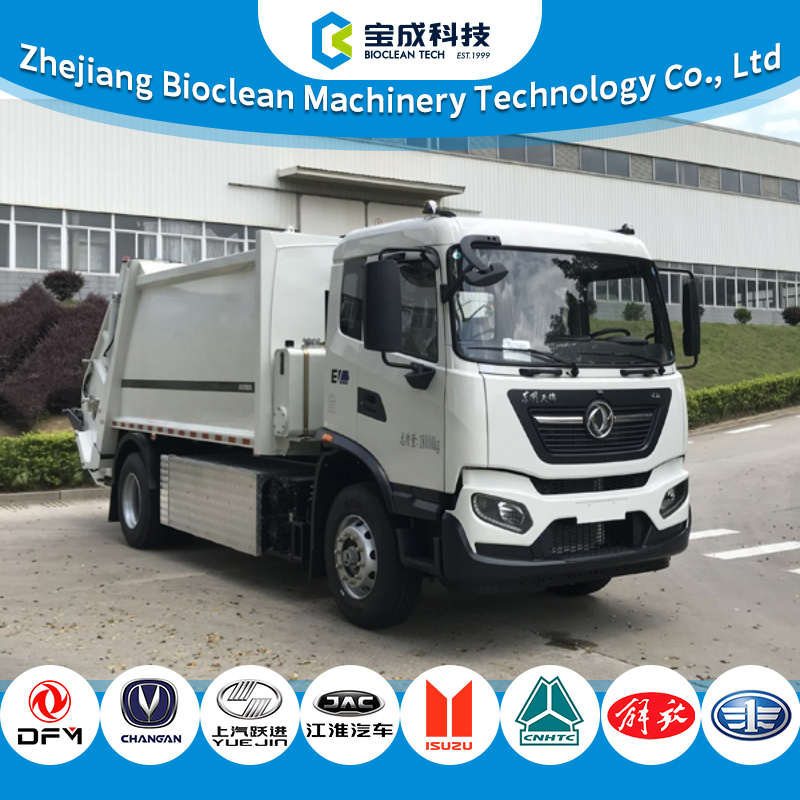

ZBJ5180XXEV 18Tons pure electric mobile trash compressed garbage compactor truck
18-Ton Pure Electric Sanitation Truck
(Garbage Compression & Transfer Vehicle)
This 18-ton pure electric sanitation truck is designed for efficient waste collection, compression, and transport. It features a permanent magnet synchronous motor (Model: TZ370XS-LKM1103) with a rated power of 80 kW and peak power of 160 kW, powered by a lithium iron phosphate battery system.
Payload Capacity: 5035–5570 kg (varies by configuration A–E)
Configurations: Flip bucket, tipping hopper, barrel lift, flatbed tipper, or no rear device
Dimensions (L): 8650–9120 mm
Safety:
EBS with ABS function (Model: EBS 5)
Side and rear protection replaced by dedicated structural components (clearance: 490 mm)
Additional Features:
Optional ETC, GPS recorder
Rear work lights, camera systems, decorative trim
Hydraulic system and self-compressing garbage container
Optional sewage tank and rear signage board
A clean-energy solution tailored for urban waste management.
Parameters:
| Item | ZBJ5180ZYSDFBEVM |
| Energy type | Pure electric |
| Dimension(L x W x H) | 9120,8650,8895,8975,8745×2520×3215(mm) |
| Chassis | DFH1180EEV2 |
| Engine | TZ370XS-LKM1103 |
| Weight | 18000(Kg) |
| Rated Loading | 5235,5505,5085,5035 ,5300,5570,5150,5100(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1400/2900,1400/2750,1400/2600(mm) |
| Tyre size | 10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR |

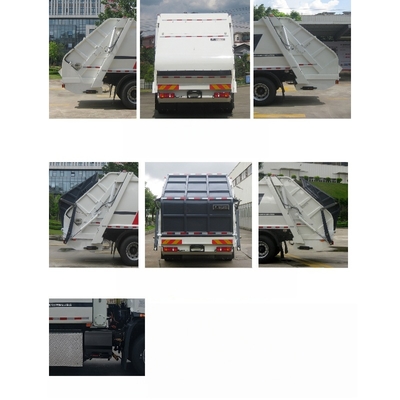

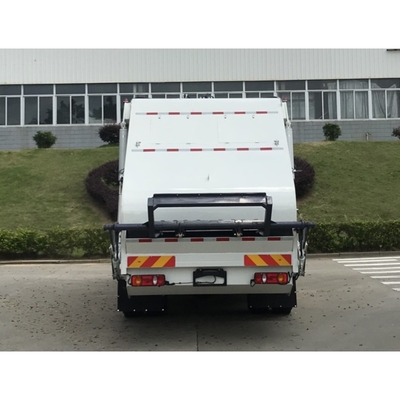

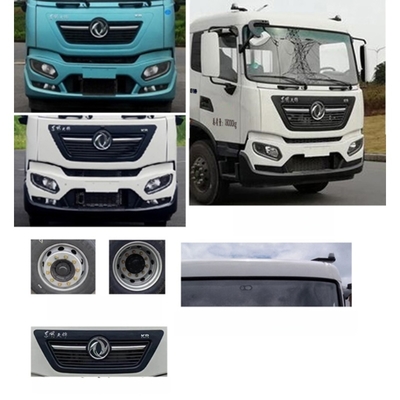

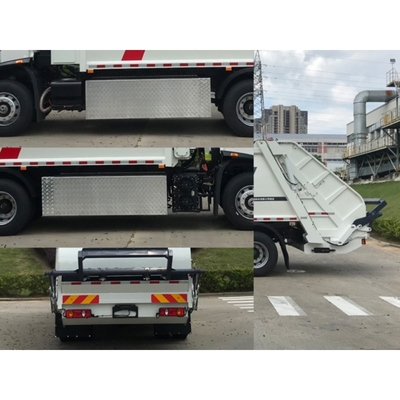

Actual photos:
|
|
