Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5180ZYSD6 |
| MOQ: | 1 Piece |
| Price: | 4585-6855usd |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
Customization 18000KG Garbage Compactor Truck With 6 Tyres ZBJ5180XX
Product Brief – 18 Ton Diesel Garbage Compactor Truck (Export Model)
Gross Vehicle Weight (GVW): 18,000 kg
Payload Capacity: 7,245–7,725 kg (varies by configuration)
Wheelbase: 4,500 mm
Body Length (varies): 8,375–8,900 mm
Main Function:
Equipped with sealed compression box, loading unit, and electric-hydraulic control system
Designed for automated garbage bin tipping, compression, and transport

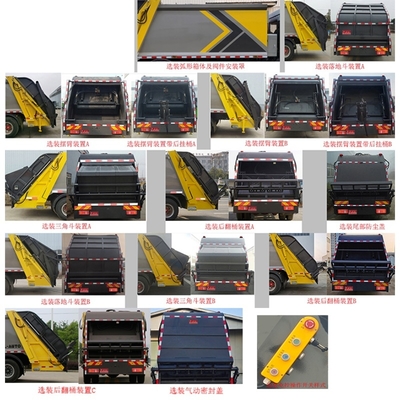

Optional Rear Equipment:
Barrel lifter, triangular hopper, ground hopper, swing arm, pneumatic seal cover, or fully sealed body
Dust cover, curved box, valve covers, electric control switch optional

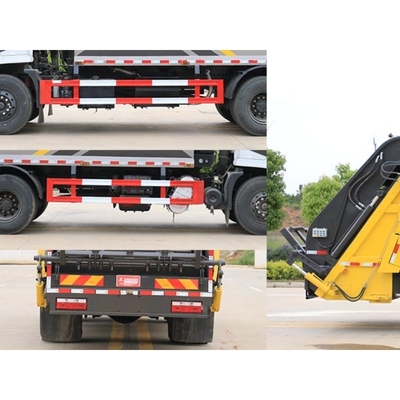

Structure & Safety:
Side guard: Q235B steel, bolted; rear guard: replaced by functional unit (clearance: 490 mm)
Optional: wheel covers, LED work lights (only in stationary work mode), ETC unit
ABS by Dongke Knorr, WABCO, or WanAn (models: 3631010-C2000, ABS-E 4S/4M, etc.)
Engine Options (L/100 km):
D6.7NS6B230, B6.2NS6B230, D4.5NS6B220, D4.0NS6B195, etc.
Fuel consumption: ~25.9–26.6 L/100 km
Heavy-duty sanitation vehicle designed for efficient and safe urban waste handling.
Parameters:
| Item | ZBJ5180ZYSD6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 8900,8585,8725,8785,8475,8615,8675,8375,8515,8575×2550,2500×3300,3400(mm) |
| Chassis | DFV1183GDP6DJ1 |
| Engine | B6.2NS6B230 |
| Weight | 18000(Kg) |
| Rated Loading | 7660,7725,7245,7310,7005,7070(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1440/2400,1300/2900,1440/2900,1500/2900,1300/2785(mm) |
| Tyre size | 10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR,11.00R20 16PR,11.00R20 18PR,295/80R22.5,295/60R22.5 18PR |

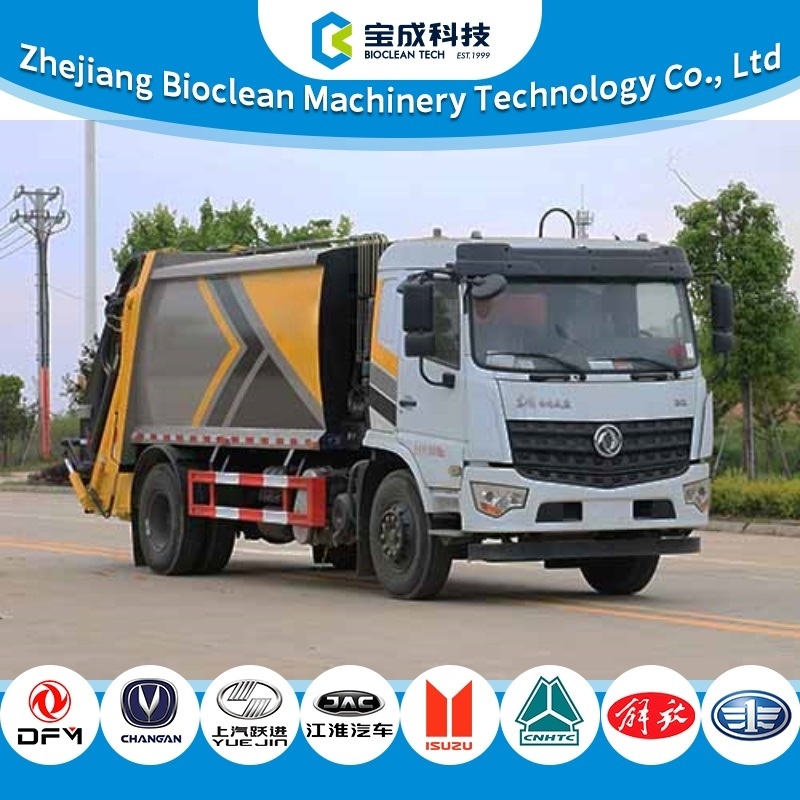

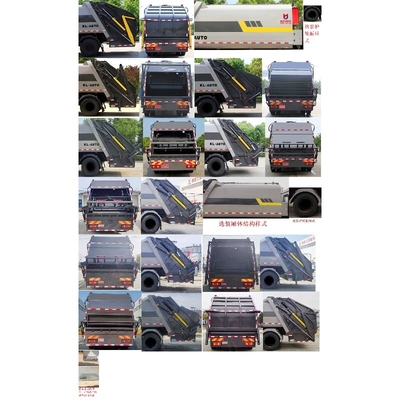

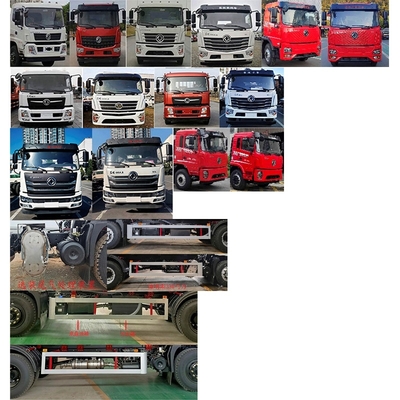

Actual photos:
|
|
