4m3 7.3tons Sewage Suction Truck For Municipal Sanitation ZBJ5070GXWC

Name: 4m3 7.3tons Sewage Suction Truck For Municipal Sanitation ZBJ5070GXWC
Brand: Zhejiang Bioclean Machinery Technology Co., Ltd
SKU: ZBJ5070GXWC
Price: 3,009.00 USD
Availability: InStock

Brand Name:	Bioclean
Model Number:	ZBJ5070GXWC
MOQ:	1 Piece
Price:	2159-3859usd
Payment Terms:	T/T
Supply Ability:	5,000 units per year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

Certification:

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Item:

ZBJ5070GXWC

Energy Type:

Diesel

Dimension(L X W X H):

5910×2020×2560mm

Chassis:

EQ1075SJ3CDF

Engine:

Q28-130E60

Curb Weight:

4110kg

Rated Loading:

3055（3120）kg

Total Mass:

7360kg

Max. Speed:

110km/h

App./Dep.Angle:

27.7°/14°

Front / Rear Suspension:

1055/1547mm

Axle Load:

2640/4720kg

Tank Volume:

4m³

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

5,000 units per year

Highlight:

7.3tons Sewage Suction Truck

Municipal Sanitation Sewage Suction Truck

4m3 Sewer Suction Vehicle

Product Description

ZBJ5070GXWC is a 7.3-ton diesel sewage suction truck, with size 5910×2020×2560. It works well in many places.

It cleans sewage and waste in small to medium areas—like communities, schools, hospitals, factories and business areas. It can suck liquid waste, sludge and dung. Its small size (about 5.9m long, 2.02m wide) lets it move easily in narrow roads.

In emergencies, like heavy rain or pipe leaks, it quickly sucks up standing water.

For municipal sanitation, it cleans small sewage pipes and manholes in back streets, helping big equipment cover more areas. It also cleans septic tanks in public toilets and waste stations, keeping places clean and reducing bad smells.

It helps clean sewage in towns and small rivers too. It’s flexible and useful for small areas.

parameters:

Item	ZBJ5070GXWC
Energy type	Diesel
Dimension(L x W x H)	5910×2020×2560mm
Chassis	EQ1075SJ3CDF
Engine	Q28-130E60
Curb Weight	4110kg
Rated Loading	3055(3120)kg
Total Mass	7360kg
Maximum Speed	110km/h
App./Dep.Angle	27.7°/14°
Front / Rear suspension	1055/1547mm
Axle Load	2640/4720kg
Tank Volume	4m³

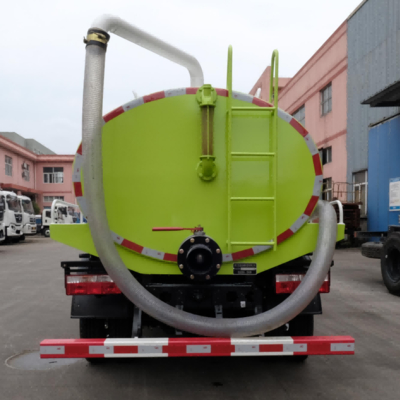

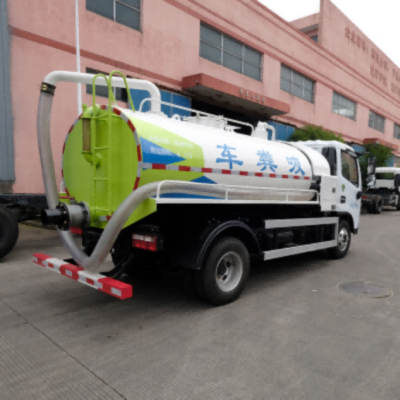

Actual photos

General Optional Setups & Region-Specific Configurations:

Optional Configurations	Intelligent Monitoring System
	Multilingual Control Panel
	Anti-Overflow Alarm Device
	Quick-Connect Fittings & Multi-Size Suction Hoses
	Hydraulic Drive System
	Self-Cleaning Flushing System
	Overload Protection Device
	Anti-overflow Valve
Tropical Regions	Anti-UV Thermal Insulation Coating
	High-Efficiency Cooling System
	Moisture-Resistant Electrical Components
	Corrosion-Resistant Sealing Gaskets
	High-Flow Cooling Water Pump
Cold Regions	Tank Thermal Insulation Layer
	Engine Preheating System
	Battery Heater
	Anti-Freeze Vacuum Pump Oil
	Suction Hose Heating Tape
	Low-Temperature-Resistant Rubber Parts
	Drain Valve Heat Tracing System
