Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5127ZYSPHEV |
| MOQ: | 1 Piece |
| Price: | USD38900-61000 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
Pure Electric Refuse Trucks 12000KG Compression Garbage Truck ZBJ5127XXEV
12-Ton Diesel Sanitation Truck
(Garbage Collection & Compression Vehicle)
This 12-ton diesel-powered sanitation truck is designed for efficient garbage collection and compression. It features a dedicated box body and compression system, with multiple optional configurations to meet various waste handling needs.
GVW: 12,000 kg
Payload: 4300 / 4380 kg
Wheelbase: 3390 mm or 3970 mm
Engine: D25TCIF1
Fuel Consumption: 10.67 L/100 km
Safety: Equipped with ABS Model: ABS/ASR-24V-4S/4M
Body Features:
Optional full/semi-sealed covers
Flip bucket, swing arm, and rear work devices
Rear lighting (for stationary operation only)
Q235 bolted side protection; rear protection integrated (500 mm ground clearance)
Power System:
Lithium iron phosphate battery
Permanent magnet synchronous motor
External charging supported
Customization: Optional ETC unit, cabin styles, control systems, ladder positions, hydraulic tank layout, and more
This model offers flexibility, safety, and performance for modern waste management operations in cities and industrial areas.
Parameters:
| Item | ZBJ5127ZYSPHEV |
| Energy type | Diesel/electric hybrid |
| Dimension(L x W x H) | 8740,8670,8675,8375,8515,8575×2550,2500×3300,3400(mm) |
| Chassis | EQ1127TACPHEVJ |
| Engine | D25TCIF1 |
| Weight | 11995(Kg) |
| Rated Loading | 4300,4380(Kg) |
| Axle Load | 3715/8280 |
| Front/Rear Overhang | 1163/2167,1163/1900,1163/2100,1163/2050,1163/2000,1163/2080,1163/2130,1163/2110,1163/2160(mm) |
| Tyre size | 8.25R20 14PR,8.25R20 16PR,245/70R19.5 14PR |

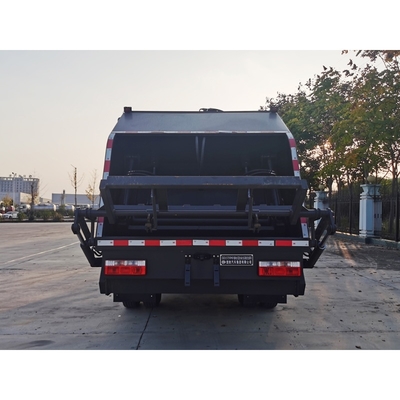

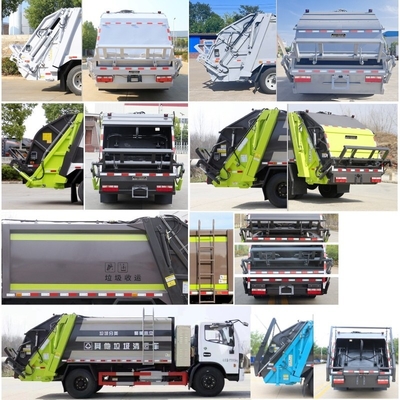

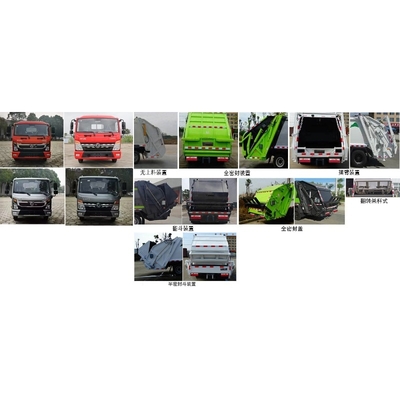

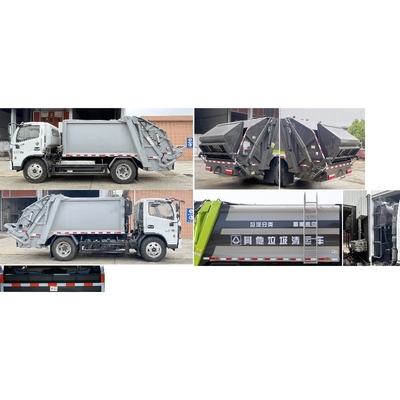

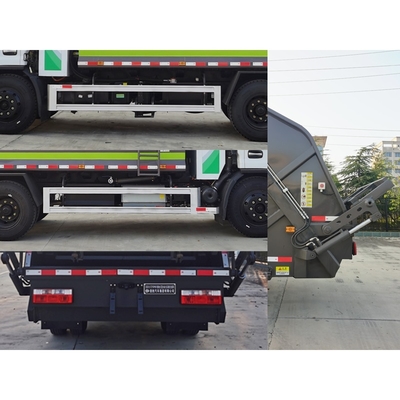

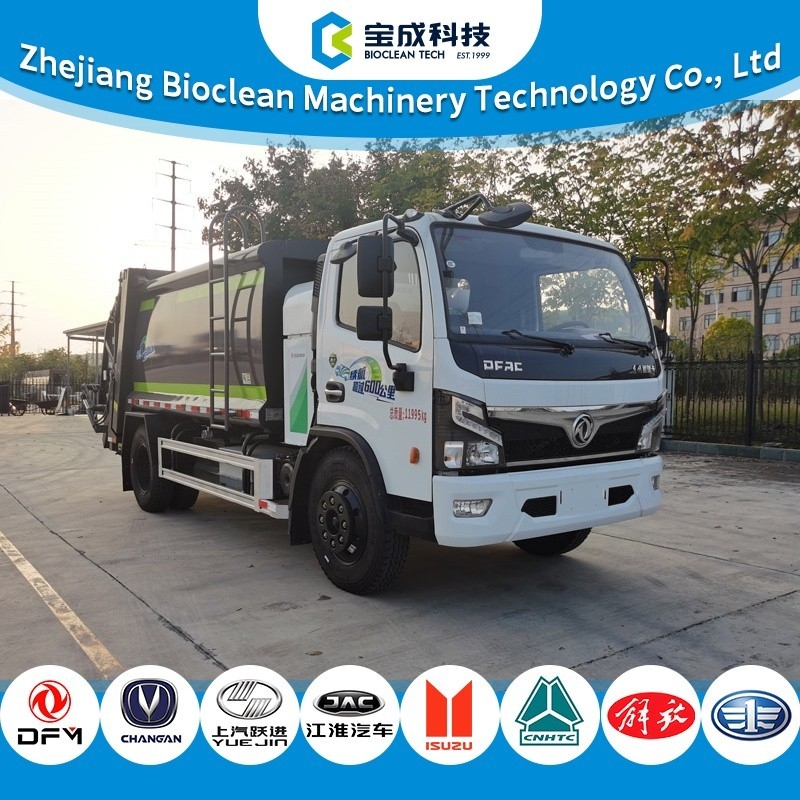

Actual photos:
|
|
