Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5140ZYSEQ6 |
| MOQ: | 1 Piece |
| Price: | USD3900-9100 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |

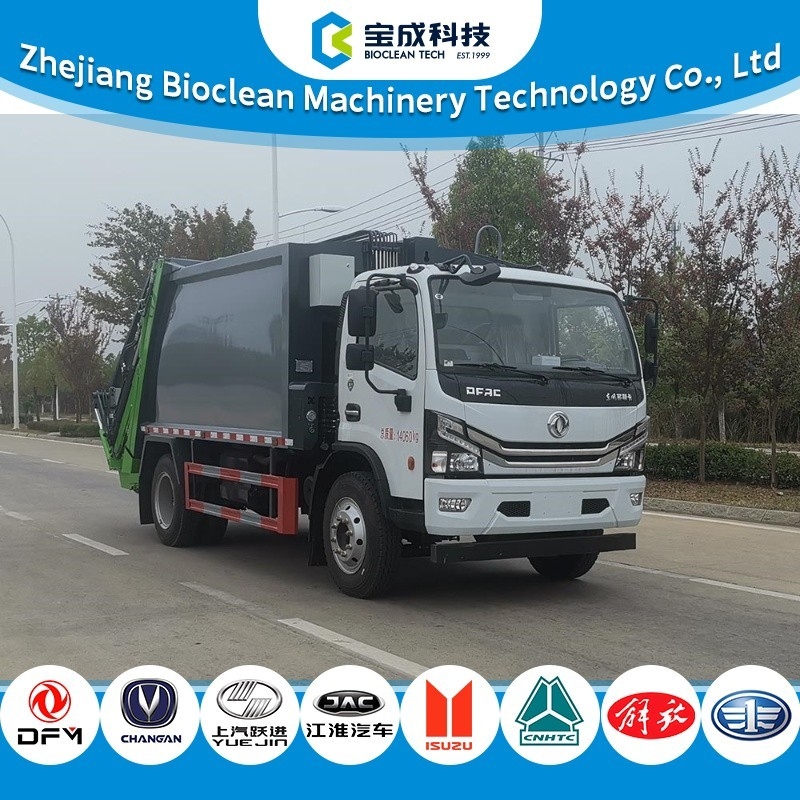

Diesel Engine 14000KG Garbage Compactor Truck Easy To Operate ZBJ5140XX
14-Ton Diesel Sanitation Truck
(Garbage Compression & Transport Vehicle)
This 14-ton diesel-powered truck is designed for waste compression, transport, and discharge. It features a box body and compression mechanism for efficient garbage handling.
GVW: 14,000 kg
Payload Options: 4915 / 5215 / 5515 kg
Wheelbase: 3800 mm (fixed chassis)
Engine Options & Fuel Consumption:
D30TCIF1 – 23.8 L/100 km
D4.0NS6B170 – 23.6 L/100 km
D25TCIF1 – 23.8 L/100 km
YCY30165-60 – 23.3 L/100 km
YCS04190-68 – 23.7 L/100 km
Structure & Options:
Side guards: Q235 steel, bolted
Rear guard integrated with special equipment (ground clearance: 485 mm)
Optional rear working lights (only operational when stationary)
Multiple cabin, tank, control box, and hydraulic layout variants available
Robust and adaptable, this model is ideal for urban and industrial waste transport tasks with configurable features for different operational needs.
Parameters:
| Item | ZBJ5140ZYSEQ6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 7720,7620,7520,7470,7370×2450,2500×3200,3150,3050(mm) |
| Chassis | EQ1145SJ8CDC |
| Engine | D4.0NS6B170 |
| Weight | 14060(Kg) |
| Rated Loading | 4915,5215,5515(Kg) |
| Axle Load | 4860/9200 |
| Front/Rear Overhang | 1180/2290,1180/2390(mm) |
| Tyre size | 8.25R20,8.25R20 16PR,9.00R20 16PR,275/80R22.5 18PR |

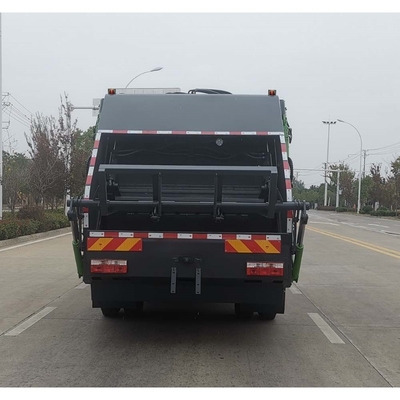

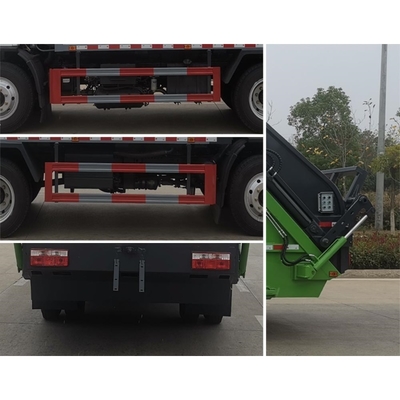

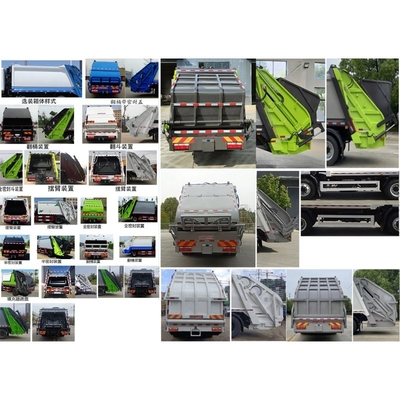

Actual photos:
|
|
