Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5123ZYSSH6 |
| MOQ: | 1 Piece |
| Price: | 4585-6855usd |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
Heavy Load Waste Compactor Truck 12000kg Compressed Garbage Truck ZBJ5123XX
Product Brief – 12 Ton Diesel Garbage Compactor Truck
Gross Vehicle Weight (GVW): 12,000 kg
Payload Capacity: 5,345 / 4,945 kg (based on configuration)
Fuel Type: Diesel
Engine Model: D25Pro (Fuel Consumption: 20.8 L/100 km)
Main Features:
Equipped with compression box and hydraulic compaction system
Designed for waste collection, compression, and transport
Optional box shapes: square or arc-type

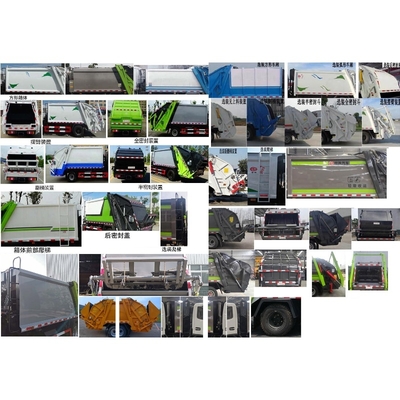

Body Options:
Loading system options:
No lifter: 7,100 mm length / 0 mm rear extension
Swing arm / sealed hopper: 7,300 mm / 200 mm
Semi-sealed hopper / bin lifter: 7,500 mm / 400 mm
Optional rear seal cover, ladder, multi-way valve cover, and mudguards

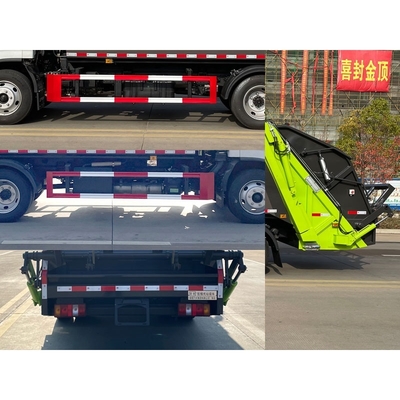

Safety & Equipment:
Side guard: Q235 steel, bolted
Rear protection integrated into functional components (clearance: 500 mm)
ABS Model: VIE ABS-II
Optional ETC unit, LED work lamp (only active during operations)
Ideal for municipal waste operations requiring reliable compression and flexible rear loading options.
Parameters:
| Item | ZBJ5123ZYSSH6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 7100,7300,7500×2350×2650,2750(mm) |
| Chassis | SH1123ZFDDWZY3 |
| Engine | YN25PLUS160A |
| Weight | 11995(Kg) |
| Rated Loading | 5345,4945(Kg) |
| Axle Load | 3995/8000 |
| Front/Rear Overhang | 1118/2182(mm) |
| Tyre size | 245/70R19.5 16PR |

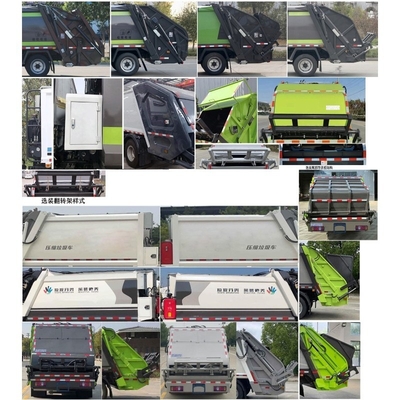

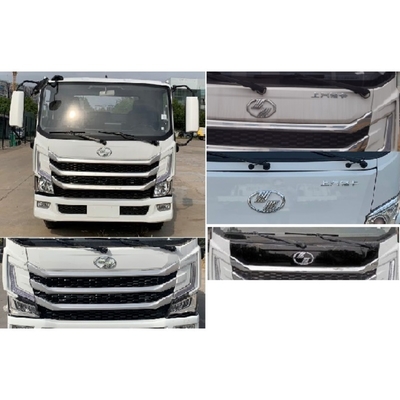

Actual photos:
|
|
