Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5121ZYSSXBEV |
| MOQ: | 1 Piece |
| Price: | 4585-6855usd |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
Customizable 12500kg Truck Mounted Garbage Compactor Vehicle ZBJ5121XX
Product Overview – 12.5 Ton Garbage Compactor Truck
Gross Vehicle Weight (GVW): 12,500 kg
Payload Options (Based on Configuration & Seating):
3150 kg (3 crew, Config A) / 3215 kg (2 crew, Config A)
3050 kg (3 crew, Config C) / 3115 kg (2 crew, Config C)
Wheelbase: 3800 mm
Fuel Type: Electric (Lithium Iron Phosphate Battery)
Motor Type: Permanent Magnet Synchronous Motor
Rated Power: 105 kW
Peak Power: 160 kW
Body Features & Configurations:
Main functional systems: garbage box, loading mechanism, compactor, hydraulic & electrical systems

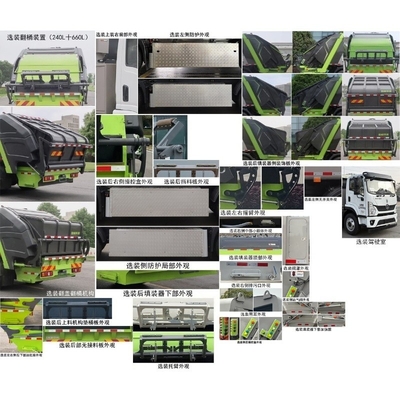

Available in 3 configurations: A (bin lifter), B (cover + bin lifter), C (hopper)
Optional parts include various loader shapes, side guards, decorative panels, rear paddles
Safety & Components:
Side protection: Aluminum alloy, bolted
Rear protection: replaced by functional equipment, clearance 480 mm
Equipped with ABS (CM4XL-4S/4M), ETC device, GPS-enabled tachograph
Reliable and customizable waste transfer solution for urban sanitation.
Parameters:
| Item | ZBJ5121ZYSSXBEV |
| Energy type | Pure electric |
| Dimension(L x W x H) | 7805,7770,7515×2510×3050(mm) |
| Chassis | SX1120EV421N |
| Engine | TZ365XSC12 |
| Weight | 12495(Kg) |
| Rated Loading | 3150,3215,3050,3115(Kg) |
| Axle Load | 4165/8330 |
| Front/Rear Overhang | 1195/2450(mm) |
| Tyre size | 8.25R20 16PR,9.00R20 16PR,245/70R19.5 16PR |

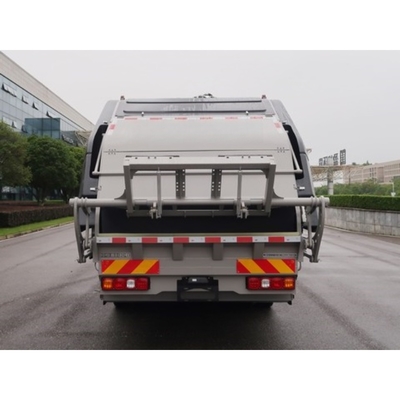

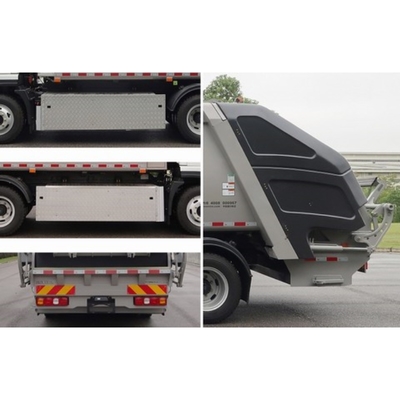

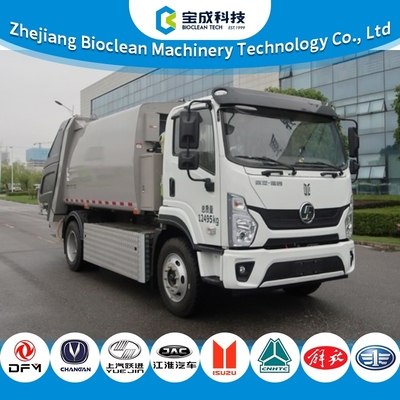

Actual photos:
|
|
