Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5183ZYSZ6 |
| MOQ: | 1 Piece |
| Price: | USD8900-9350 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |

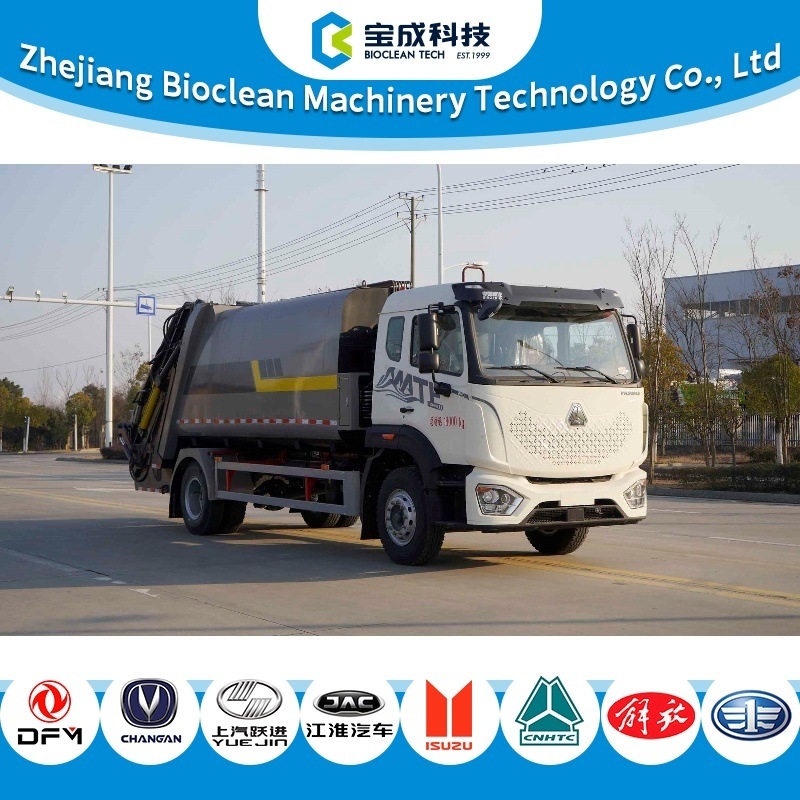

18000kg Mobile Garbage Compactor Truck Easy To Operate ZBJ5183XXEV
18-Ton Diesel Sanitation Truck
(Garbage Collection & Compression Vehicle)
This 18-ton diesel-powered sanitation truck features a compression box and compaction system for efficient waste collection and transfer. Built on a 5100 mm wheelbase chassis with leaf-spring suspension, it ensures durability and stability.
Payload Range: 5555–6720 kg
Engine Options: Multiple models (MC07, WP4.6, WP6H, WP7 series)
Fuel Consumption: 24.43–26.73 L/100 km
Optional Features:
Rear devices: Flip bucket, triangle hopper, ground hopper, swing arm
ETC onboard unit, GPS-enabled driving recorder
Speed limiter (79 or 89 km/h)
Custom box structure, fender styles, left/right sewage doors
Rear work lights (only operational during stationary mode)
Safety:
Side guard: Q235B steel, bolted
Rear guard integrated into structure (clearance: 500 mm)
This model is ideal for municipal and industrial waste handling, with robust structure and versatile configurations.
Parameters:
| Item | ZBJ5183ZYSZ6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 9750,9635,9525,9425×2550×3400,3500(mm) |
| Chassis | ZZ1187K511JF1 |
| Engine | MC07H.33-60 |
| Weight | 18000(Kg) |
| Rated Loading | 6720,6655,6170,6105,5620,5555(Kg) |
| Axle Load | 6500/11500 |
| Front/Rear Overhang | 1550/3100,1550/2985,1550/2875,1550/2775(mm) |
| Tyre size | 10.00R20 18PR,11R22.5 18PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,295/60R22.5 18PR,305/60R22.5 18PR,315/60R22.5 18PR,275/80R22.5 18PR |

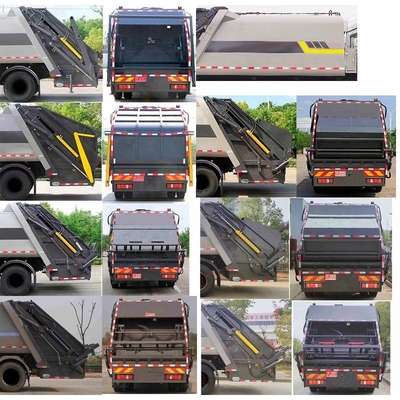

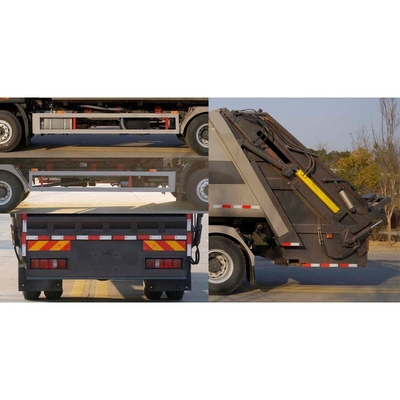

Actual photos:
|
|
