Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5250ZYSZZ6 |
| MOQ: | 1 Piece |
| Price: | USD6900-8455 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5000unit/year |
25000kg Diesel Engine Compressed Garbage Truck High Cleaning Efficiency ZBJ5250XX
Chassis: Adopt a second-class chassis of a well-known brand, which has strong load-bearing capacity, advanced technology and reliable quality. It is used to realize functions such as the bearing of special mechanisms and the driving of the vehicle.
The garbage bin is a component of this product for collecting and storing domestic waste, and it is also the base for connecting the compaction and filling device. The overall stress structural parts of the garbage bin are designed reliably, and the rigidity is reasonably matched; the garbage bin is designed to be airtight, which can effectively prevent secondary pollution.
The feeding mechanism is a device for loading the garbage in the trash can into the stuffing device. The feeding mechanism can load two 240L trash cans at the same time.
The stuffing device is located at the tail of the box body, and it is a device for compressing and covering the loose garbage. The compaction and filling device is composed of components such as a scraper, a sliding plate and a sliding block. The sliding plate is installed in the sliding grooves on both sides of the stuffing device and can slide up and down along the sliding grooves. The scraper is installed on the sliding plate and can perform a rotating motion.
Parameters:
| Item | ZBJ5250ZYSZZ6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 9750,9635,9525,9425×2550×3400,3500(mm) |
| Chassis | ZZ1257N56CJF1 |
| Engine | MC07H.35-60 |
| Weight | 25000(Kg) |
| Rated Loading | 8440,8375,10070,10005(Kg) |
| Axle Load | 6750/6750/11500 |
| Front/Rear Overhang | 1550/2650(mm) |
| Tyre size | 11.00R20 18PR,12.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR,315/60R22.5 18PR |

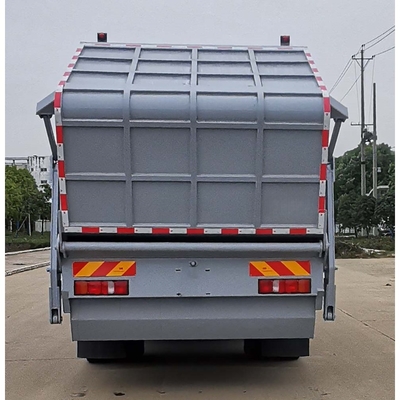

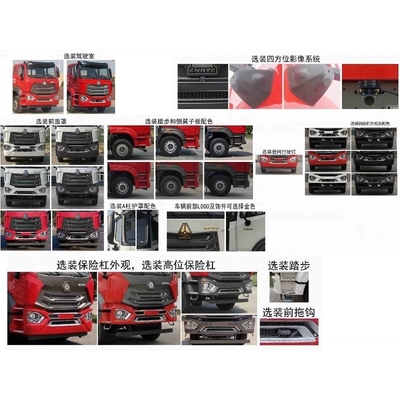

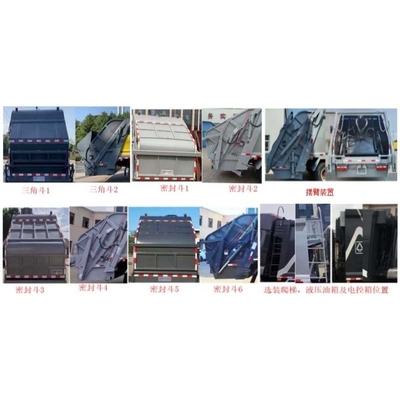

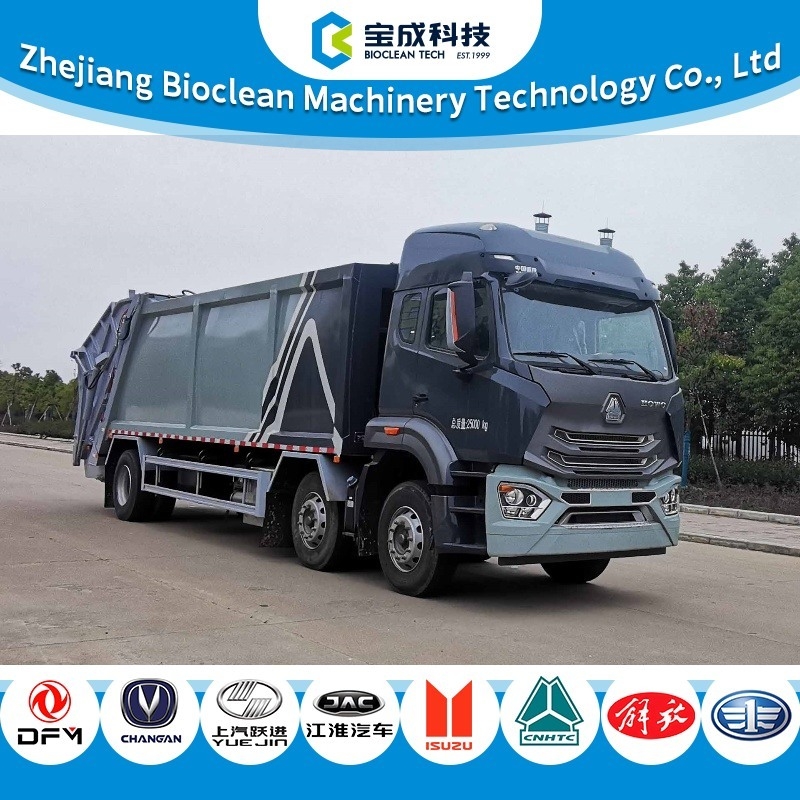

Actual photos:
|
|
