Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5181GSSSEHBEV |
| MOQ: | 1 Piece |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |

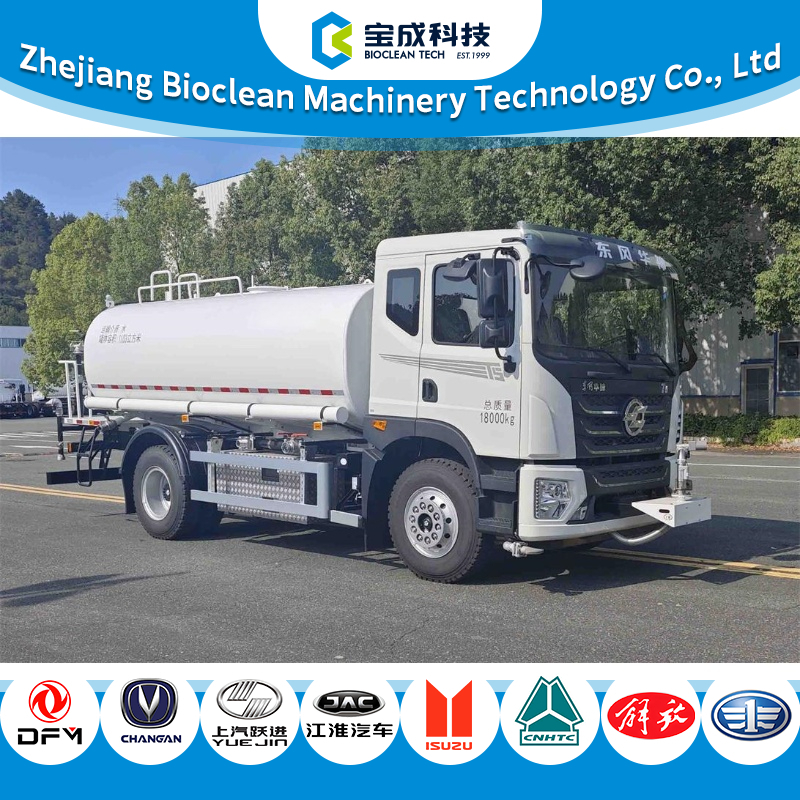

18tons pure clectric 11m³ water tank water spray spraying tanker sprayer truck
Pure Electric 18 T Sprinkler Truck (18 000 kg GVW, 10 570 kg Payload / 10 505 kg Net)
Overall Length & Front Overhang
Without front cannon: 7 765 mm / 0 mm extension

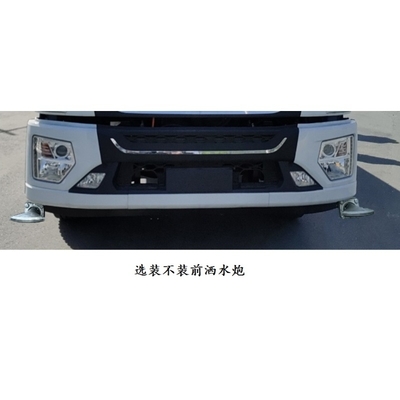

With front cannon: 8 285 mm / 520 mm extension
Water Tank
Dimensions (L × long × short): 4 500 × 2 400 × 1 450 mm
Capacity: 11.03 m³ total / 10.50 m³ effective
Media: Water (ρ = 1 000 kg/m³)

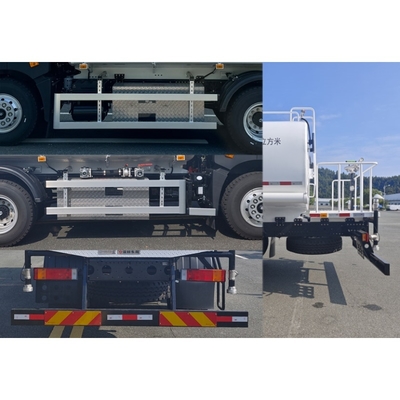

Protection
Side & rear guards: Q235B steel, bolt‑on
Rear guard section: 160 × 60 mm; 480 mm ground clearance
Electric Drive & Energy Storage
Motor: Permanent‑magnet synchronous TZ365XS‑HSM1601, 95 kW continuous / 160 kW peak
Standard & Optional Equipment
Rear arrow‑lamp (operational mode)
Optional: direct‑powered ETC, mist‑cannon units, rear pump‑motor assembly, tank stiffeners, rear tool box, water‑cannon brackets
Ideal for zero‑emission urban landscaping, street cleaning and dust suppression in global markets.
Parameters:
| Item | ZBJ5181GSSSEHBEV |
| Energy type | Pure clectric |
| Dimension(L x W x H) | 8285,7765×2550×3140(mm) |
| Chassis | DFD1180GLEVJ |
| Engine | TZ365XS-HSM1601 |
| Curb Weight | 10570,10505(Kg) |
| Rated Loading | 7300(Kg) |
| Total Mass | 18000(Kg) |
| Front/Rear Overhang | 1250/2565(mm) |
| Tyre size | 10.00R20 18PR |
|
|
