16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6

16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6

Brand Name: Bioclean
Model Number: ZBJ5160TSL6
MOQ: 1 Piece
Price: 4050-6890usd
Payment Terms: T/T
Supply Ability: 5,000 units per year
Detail Information
Product Description
Detail Information
Place of Origin:
Ningbo, China
Certification:
CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification
Item:
ZBJ5160TSL6
Energy Type:
Diesel
Dimension(L X W X H):
8630×2480×3080(mm)
Chassis:
BJ1166VKPFK-1M
Engine:
F4.5NS6B240A
Curb Weight:
9900(Kg)
Rated Loading:
6370(Kg)
Total Mass:
16000(Kg)
Max.Speed:
100(km/h)
Sweeping Width:
2.5m
Sweeping Efficiency:
93%
Maximum Sweeping Speed:
20km/h
Maximum Inhaled Particles:
110mm
Packaging Details:
Wooden Case /Iron Frame/Container/SKD /CKD
Supply Ability:
5,000 units per year
Highlight:

16 Ton Truck Mounted Street Sweeper

,

Robust Body Truck Mounted Street Sweeper

,

16 Ton Street Sweeper Vehicle

Product Description

ZBJ5160TSL6 16ton diesel  street  road sweeper truck



Key Parameters​
  • Total Weight: 16 tons. The body is robust, suitable for heavy - duty cleaning tasks.​
  • Size: 8630×2480×3080mm. It offers a large cleaning range while maintaining good road passability.​
  • Power: 239 - horsepower diesel engine. It delivers strong power to ensure efficient and continuous cleaning operations.​
  • Load Capacity: 9990Kg. It can collect a large quantity of road garbage, reducing the frequency of dumping.​
Core Configurations and Functions​
  • Cleaning Mechanism: It mainly cleans the road through special devices such as the box, cleaning mechanism and fan, focusing on road cleaning operations.​
  • Safety Features: The side protection is replaced by the vehicle body structure, and the rear protection is replaced by the vehicle's special device. The maximum  ground clearance of the rear protection is 160mm. It is equipped with ABS systems from different manufacturers: ABS - E from WABCO Vehicle Control Systems (China) Co., Ltd., CM4XL - 4S/4M from Guangzhou Ruili Kemi Auto Electronics Co., Ltd., 3550D - 1010 from Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., and EBS 5 from Knorr Brake System (Dalian) Co., Ltd., ensuring braking safety.​
  • Optional Features: A speed limiting device can be installed with the chassis, limiting the speed to 89km/h. Different appearance structures can be selected to meet various needs.​
Application Scenarios
​
It is suitable for large - scale road cleaning operations, such as urban main roads, large industrial areas and transportation hubs. With its strong power, large load capacity and efficient cleaning devices, it can effectively complete the cleaning of a large amount of road garbage.
​
parameters:
Item ZBJ5160TSL6
Energy type Diesel
Dimension(L x W x H) 8630×2480×3080(mm)
Chassis BJ1166VKPFK-1M
Engine F4.5NS6B240A
Curb Weight 9900(Kg)
Rated Loading 6370(Kg)
Total Mass 16000(Kg)
Max.Speed 100(km/h)
Sweeping Width 2.5m
Sweeping Efficiency 93%
Maximum Sweeping Speed 20kmh
Maximum Inhaled Particles 110mm

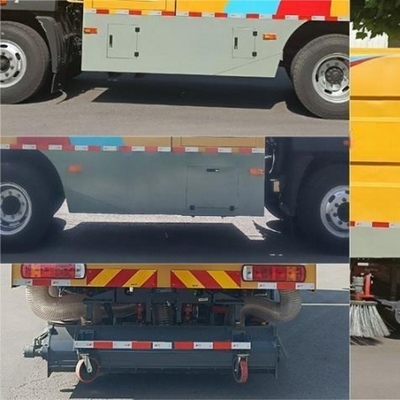

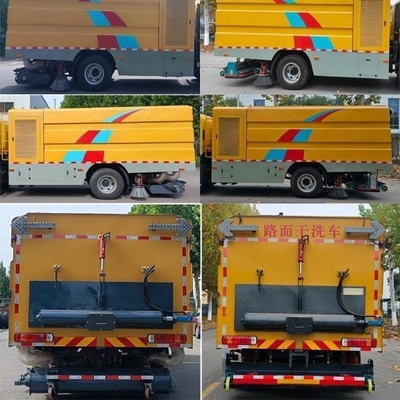

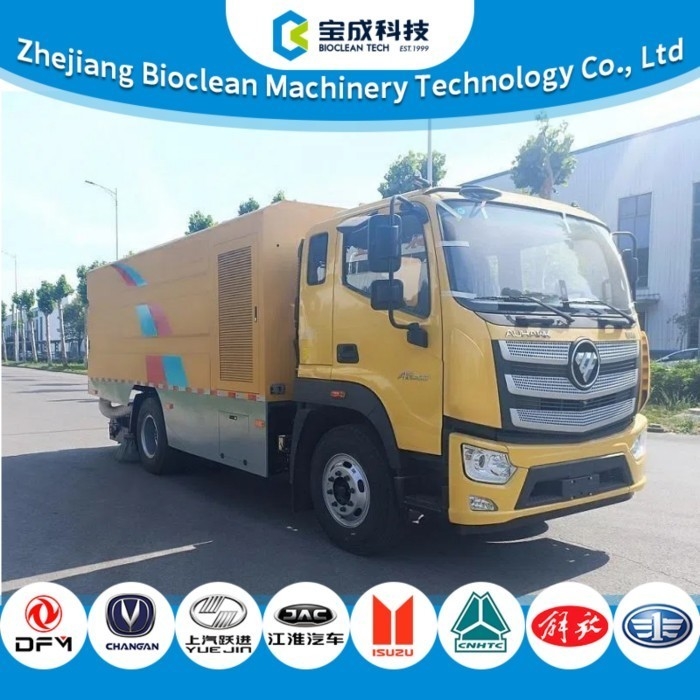

Actual photos
16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 0
16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 1
16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 2
16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 3



16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 4

16 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 516 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 616 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 716 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 816 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 916 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 1016 Ton Truck Mounted Street Sweeper Vehicle With Robust Body ZBJ5160TSL6 11
