High Efficiency 18ton Diesel Road Sweeper Vehicle Road Sweeper Lorry ZBJ5180TSLZ6

Name: High Efficiency 18ton Diesel Road Sweeper Vehicle Road Sweeper Lorry ZBJ5180TSLZ6
Brand: Zhejiang Bioclean Machinery Technology Co., Ltd
SKU: ZBJ5180TSLZ6
Price: 6,225.00 USD
Availability: InStock

Brand Name:	Bioclean
Model Number:	ZBJ5180TSLZ6
MOQ:	1 Piece
Price:	5650-6800usd
Payment Terms:	T/T
Supply Ability:	5,000 units per year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

Certification:

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Item:

ZBJ5180TSLZ6

Energy Type:

Diesel

Dimension(L X W X H):

8860,8650,9670,9880×2550×3200(mm)

Chassis:

ZZ1187N501GF1

Engine:

WP8T360E62

Curb Weight:

15000,14210,13980,13850,14300(Kg)

Rated Loading:

2870,3660,3890,4020,3570(Kg)

Total Mass:

16000(Kg)

Max.Speed:

89,80,101(km/h)

Sweeping Width:

2.6m

Sweeping Efficiency:

93%

Maximum Sweeping Speed:

20km/h

Maximum Inhaled Particles:

110mm

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

5,000 units per year

Highlight:

18ton Diesel Road Sweeper

18ton Road Sweeper Vehicle

High Efficiency Road Sweeper Lorry

Product Description

ZBJ5180TSLZ6 18ton diesel street road sweeper truck

Various Optional Configurations

Option 1: Without air outlet, with a total mass of 14210kg;

Option 2: Without front connecting frame and work light, with an approach angle of 14°, front overhang of 1650mm, vehicle length of 8650mm and mass of 13980kg;

Option 3: Without air outlet, front connecting frame and work light, with an approach angle of 14°, front overhang of 1650mm, vehicle length of 8650mm and mass of 13850kg;

Option 4: Install a washing and sweeping roller brush at the front only during road sweeping operations;

Option 5: Two types of side protection appearances;

Option 6: A sewage discharge outlet can be installed at the rear door of the garbage bin for easy sewage treatment;

Only a 4500mm wheelbase is used;

Option 7: Without front connecting bracket and air blowing device, equipped with rear anti-collision buffer pad, with a front overhang of 1430mm, vehicle length of 9670mm, wheelbase of 5000mm and mass of 14300kg;

Option 8: With front connecting bracket, without air blowing device, equipped with rear anti-collision buffer pad, with a front overhang of 1640mm, vehicle length of 9880mm, wheelbase of 5000mm and mass of 14300kg, only using leaf spring suspension;

Other options: ETC on-board device and speed limiting device (maximum speed 80km/h or 89km/h) can be selected; rearview mirrors can be selected with the chassis; EBS can also be selected (model EBS3, manufacturer: WABCO (Shanghai) Management Co., Ltd.).

Basic Configuration and Safety Guarantee

Wheelbase: The standard wheelbase is 4500mm, and some optional schemes adopt a 5000mm wheelbase;

Protection devices: The side protection is made of aluminum alloy, and the rear protection is made of Q235A, both connected by bolts. The rear protection has a cross-sectional size of 80×140mm and a height of 495mm from the ground, providing reliable protection;

Braking system: Equipped with an ABS system (model 4460046300, manufacturer: WABCO (Shanghai) Management Co., Ltd.) to improve braking stability;

Others: A tachograph with satellite positioning function is installed. The rear arrow lights are only used during rest and not turned on during driving, ensuring the safety of operation and driving.

Application Scenarios

With various configuration options and professional cleaning devices, this vehicle is suitable for cleaning operations on various road surfaces such as urban roads, streets and parks. It can flexibly adjust the configuration according to different operating environments and needs, efficiently complete the cleaning tasks and keep the road surfaces clean.

parameters:

Item	ZBJ5180TSLZ6
Energy type	Diesel
Dimension(L x W x H)	8860,8650,9670,9880×2550×3200(mm)
Chassis	ZZ1187N501GF1
Engine	WP8T360E62
Curb Weight	15000,14210,13980,13850,14300(Kg)
Rated Loading	2870,3660,3890,4020,3570(Kg)
Total Mass	18000(Kg)
Max.Speed	89,80,101(km/h)
Sweeping Width	2.6m
Sweeping Efficiency	93%
Maximum Sweeping Speed	20kmh
Maximum Inhaled Particles	110mm

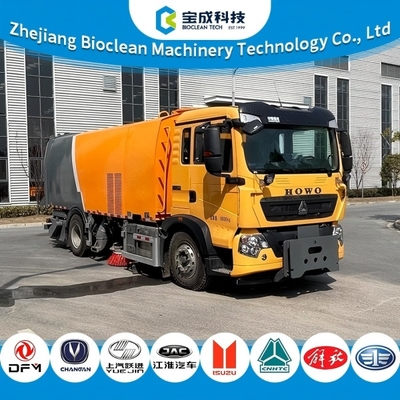

Actual photos

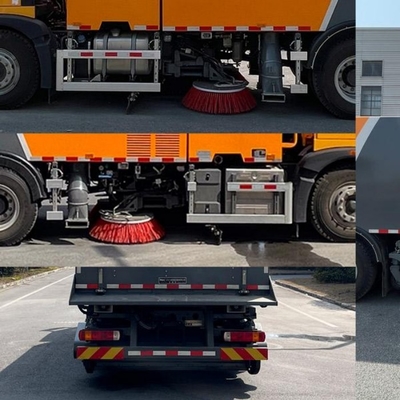

High Efficiency 18ton Diesel Road Sweeper Vehicle Road Sweeper Lorry ZBJ5180TSLZ6 2

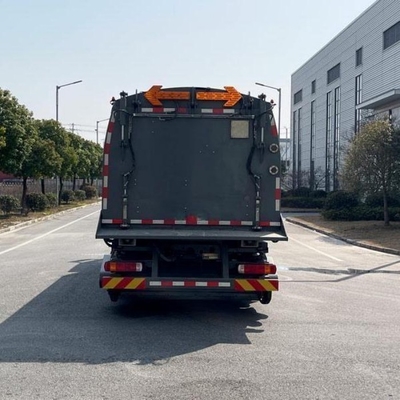

High Efficiency 18ton Diesel Road Sweeper Vehicle Road Sweeper Lorry ZBJ5180TSLZ6 3
