Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck

Brand Name:	Bioclean
Model Number:	ZBJ5120GSS6SW
MOQ:	1 Piece
Price:	4685-7865
Payment Terms:	T/T
Supply Ability:	5,000 units per year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

Certification:

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L X W X H):

7385,7410×2250×2730(mm)

Chassis:

STQ1125L04Y2N6

Engine:

YCS04200-68

Maximum Speed:

80(km/h)

Approaching/Departure Angle:

23/11(°)

Front/Rear Overhang:

1275/2310,1300/2310(mm)

Axle Load:

4850/7145

Curb Weight:

6500,6565(Kg)

Rated Loading:

5300(Kg)

Total Mass:

11995(Kg)

Number Of Tires:

Tyre Size:

8.25R20 16PR,245/70R19.5 16PR

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

5,000 units per year

Highlight:

6800L Water Tanker Truck

12 Ton Water Tanker Truck

6800L Water Sprinkler Truck

Product Description

12-ton water tank 6800L water spray spraying tanker sprayer road cleaning truck

12-ton Diesel-powered Sprinkler Truck: Brief Export Intro

This 12-ton diesel-powered sprinkler truck, with load capacities of 6500Kg and 6565Kg, is ideal for road sprinkling operations.

The tank, designed to transport water (density 1000kg/m³), has an overall capacity of 6.8 cubic meters and an effective volume of 6.5 cubic meters. Its external dimensions are 3600×1980×1280mm (length×major axis×minor axis).

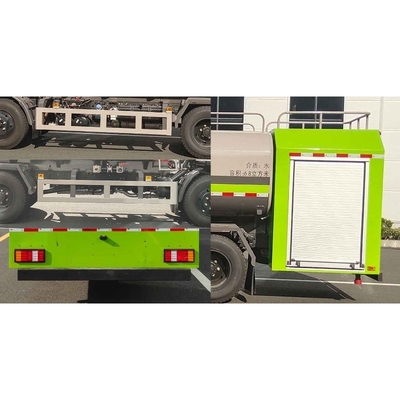

For safety, both side and rear protection devices are made of Q235 material, connected by bolts. The rear protection has a cross-sectional size of 60×120mm (width×height) and a ground clearance of 410mm.

It uses a chassis with a 3800mm wheelbase. The ABS system is from Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., model ABS/ASR-24V-4S/4M.

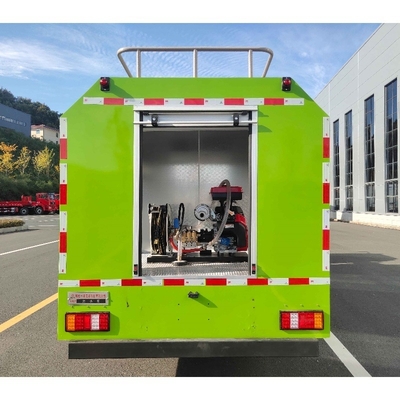

Optional equipment includes a direct-powered ETC on-board device. Equipped with dedicated devices like a tank and water pump, it is mainly used for road sprinkling work.

Parameters:

Item	ZBJ5120GSS6SW
Energy type	Diesel
Dimension(L x W x H)	7385,7410×2250×2730(mm)
Chassis	STQ1125L04Y2N6
Engine	YCS04200-68
Curb Weight	6500,6565(Kg)
Rated Loading	5300(Kg)
Total Mass	11995(Kg)
Max.Speed	80(km/h)
tyre size	8.25R20 16PR,245/70R19.5 16PR

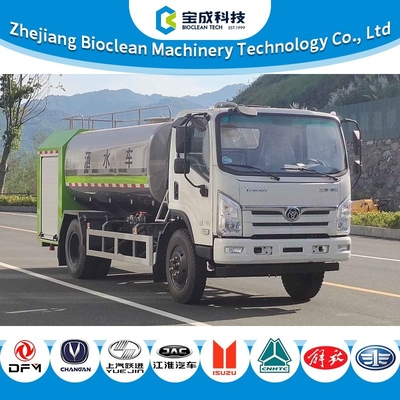

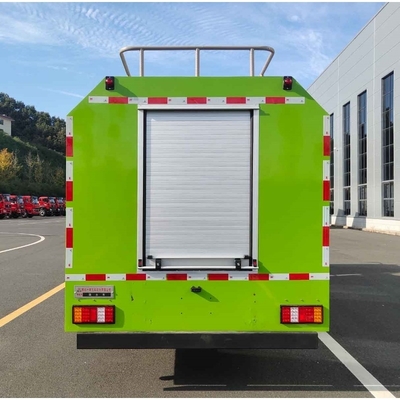

Actual photos:

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 0

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 1

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 2

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 3

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 4

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 7

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 8

Commercial 12 Ton 6800L Water Tanker Truck Water Sprinkler Truck 9
