Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5040GXWA6 |
| MOQ: | 1 Piece |
| Price: | 3269-4859usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
Total Weight: 4495Kg. Compact, fits small/medium sewage work.
Size: 5230×1810, 1660×2240, 2290mm. Moves flexibly in various roads.
Power: 108-horsepower diesel engine. Stable, meets sewage suction needs.
Load: 1600Kg. Suitable for small/medium sewage collection and transport.
Devices & Performance: Has vacuum pump for sewage suction. Handles suspended pollutants (0.8t/m³). 2m³ tank (2226mm long, φ1208mm diameter) for storage.

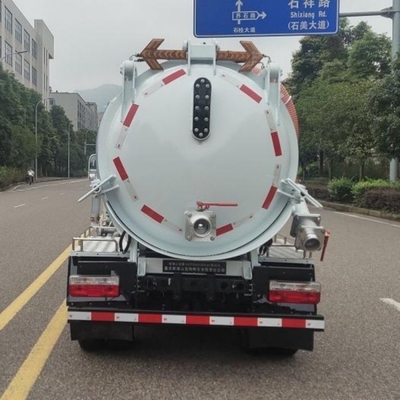

Safety: Side/rear protection (Q235, bolted). Rear: 100×50×3mm, 370/405mm off ground. APG3550500A ABS (Zhejiang Yatai) boosts safety. Rear arrow light warns during work.
Chassis: 2800mm wheelbase, ensures stable and flexible operation.
| Item | ZBJ5040GXWA6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 5230×1810,1660×2240,2290(mm) |
| Chassis | EQ1045SJ16DC |
| Engine | Q23A-110E60 |
| Curb Weight | 2765(Kg) |
| Rated Loading | 1600(Kg) |
| Total Mass | 4495(Kg) |
| Maximum Speed | 110(km/h) |
| App./Dep.Angle | 20/25(°) |
| Front / Rear suspension | 1190/1240(mm) |
| Axle Load | 1650/2845 kg |
| Tank Volume | 2000L |
| Optional Configurations |
Intelligent Monitoring System |
| Multilingual Control Panel | |
| Anti-Overflow Alarm Device | |
| Quick-Connect Fittings & Multi-Size Suction Hoses | |
| Hydraulic Drive System | |
| Self-Cleaning Flushing System | |
| Overload Protection Device | |
| Anti-overflow Valve | |
|
Anti-UV Thermal Insulation Coating |
| High-Efficiency Cooling System | |
| Moisture-Resistant Electrical Components | |
| Corrosion-Resistant Sealing Gaskets | |
| High-Flow Cooling Water Pump | |
|
Tank Thermal Insulation Layer |
| Engine Preheating System | |
| Battery Heater | |
| Anti-Freeze Vacuum Pump Oil | |
| Suction Hose Heating Tape | |
| Low-Temperature-Resistant Rubber Parts | |
| Drain Valve Heat Tracing System |
