Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5090GXWC6 |
| MOQ: | 1 Piece |
| Price: | 5865-6875usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
Weight: 9100Kg, solid for suction work.
Size: 5990×2140×2830mm, fits narrow spaces.
Power: 179hp, strong for efficient work.
Load: 4025Kg, carries much liquid waste.

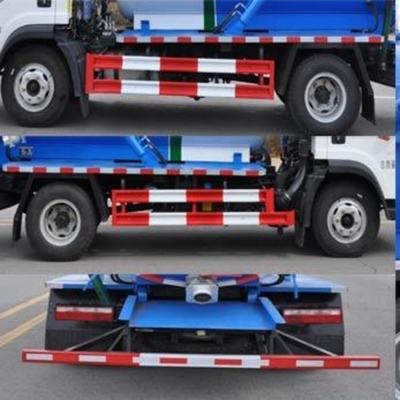

Side protection: Q235B, bolted, 380mm off ground.
Rear protection: cold-formed steel/Q235B, bolted (100×50mm, 390mm off ground).
ABS options: CM4XL-4S/4M (Guangzhou Ruili), VIE ABS-II (Zhejiang Wanan).
Cab: crew, modified side windows, new front, different doors.
Exterior: new bumper, fenders, aluminum rims.
Functions: no spare tire, ETC.
| Item | ZBJ5090GXWC6 |
| Energy type | Diesel |
| Dimension(L x W x H) | 5990×2140×2830(mm) |
| Chassis | CA1090P40K42L2BE6A84 |
| Engine | CA4DD2-18E6 |
| Curb Weight | 4880(Kg) |
| Rated Loading | 4025(Kg) |
| Total Mass | 9100(Kg) |
| Maximum Speed | 95(km/h) |
| App./Dep.Angle | 20/14(°) |
| Front / Rear suspension | 1115/1575(mm) |
| Axle Load | 3300/5800 kg |
| Tank Volume | 5000L |
| Optional Configurations |
Intelligent Monitoring System |
| Multilingual Control Panel | |
| Anti-Overflow Alarm Device | |
| Quick-Connect Fittings & Multi-Size Suction Hoses | |
| Hydraulic Drive System | |
| Self-Cleaning Flushing System | |
| Overload Protection Device | |
| Anti-overflow Valve | |
|
Anti-UV Thermal Insulation Coating |
| High-Efficiency Cooling System | |
| Moisture-Resistant Electrical Components | |
| Corrosion-Resistant Sealing Gaskets | |
| High-Flow Cooling Water Pump | |
|
Tank Thermal Insulation Layer |
| Engine Preheating System | |
| Battery Heater | |
| Anti-Freeze Vacuum Pump Oil | |
| Suction Hose Heating Tape | |
| Low-Temperature-Resistant Rubber Parts | |
| Drain Valve Heat Tracing System |
