Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5103GXWBHA |
| MOQ: | 1 Piece |
| Price: | 5700-6800usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |

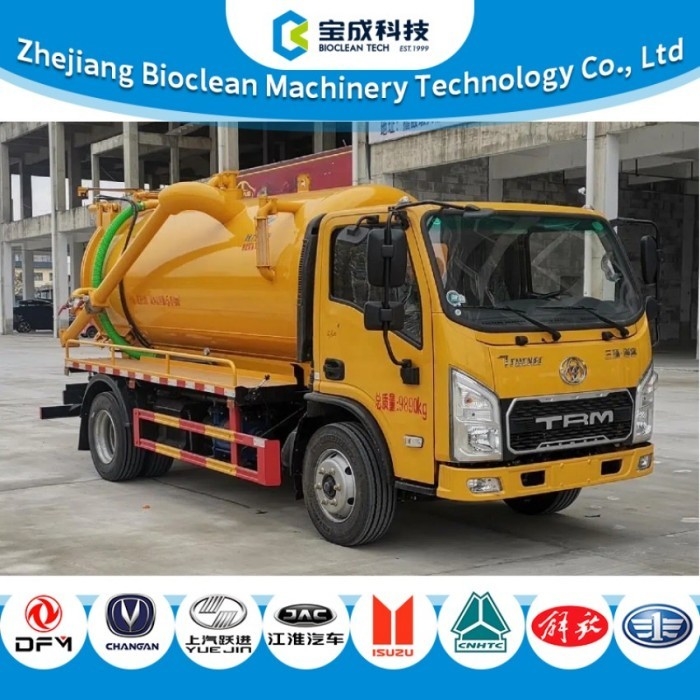

Total Weight: 9890Kg. Strong body, fits various suction needs.
Size: 6250×2200×2650mm. Suits many workplaces, good passability.
Power: 167hp. Strong for efficient sewage suction.
Load: 4800Kg. Carries much sewage, fewer transports.

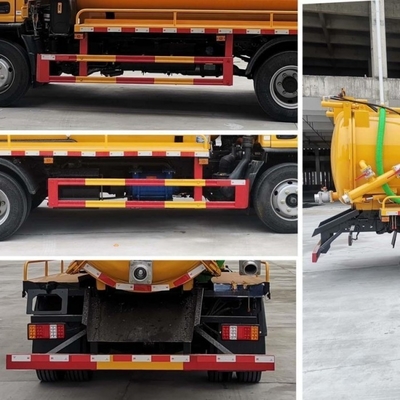

Side/rear protection: Q235A steel, welded (left, right, lower rear).

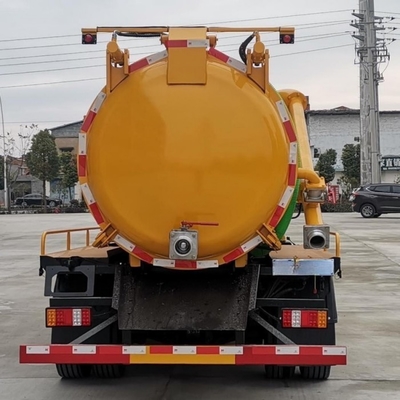

Rear protection: 120×50mm cross-section, 400mm off ground, reliable.
Equipped with ABS/ASR-24V-4S/4M (Dongke Knorr) for safer driving.
| Item | ZBJ5103GXWBHA |
| Energy type | Diesel |
| Dimension(L x W x H) | 6250×2200×2650(mm) |
| Chassis | STQ3129L02Y1N6 |
| Engine | YCY25170-66 |
| Curb Weight | 4960(Kg) |
| Rated Loading | 4800(Kg) |
| Total Mass | 9890(Kg) |
| Maximum Speed | 80(km/h) |
| App./Dep.Angle | 18/12,18/11(°) |
| Front / Rear suspension | 1200/1750,1200/1950(mm) |
| Axle Load | 3460/6430kg |
| Tank Volume | 4800L |
| Optional Configurations |
Intelligent Monitoring System |
| Multilingual Control Panel | |
| Anti-Overflow Alarm Device | |
| Quick-Connect Fittings & Multi-Size Suction Hoses | |
| Hydraulic Drive System | |
| Self-Cleaning Flushing System | |
| Overload Protection Device | |
| Anti-overflow Valve | |
|
Anti-UV Thermal Insulation Coating |
| High-Efficiency Cooling System | |
| Moisture-Resistant Electrical Components | |
| Corrosion-Resistant Sealing Gaskets | |
| High-Flow Cooling Water Pump | |
|
Tank Thermal Insulation Layer |
| Engine Preheating System | |
| Battery Heater | |
| Anti-Freeze Vacuum Pump Oil | |
| Suction Hose Heating Tape | |
| Low-Temperature-Resistant Rubber Parts | |
| Drain Valve Heat Tracing System |
