Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5140GXW6BHQ |
| MOQ: | 1 Piece |
| Price: | 3695-6085usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
Weight: 14000Kg, 3800mm chassis, strong for high-intensity work.
Size: 6870, 7010×2360×3150, 3220mm. Length vs front/rear overhang: 6870/1180/1890mm and 7010/1317/1893mm, fits environments.
Power: 210hp, strong for efficient sewer sludge work.
Load: 6485Kg, carries much, fewer trips.
Side/rear protection: Q235, welded. Rear: 120×50mm, 470mm off ground.
ABS/ASR-24V-4S/4M (Xiangyang Dongfeng Longcheng) boosts braking stability.

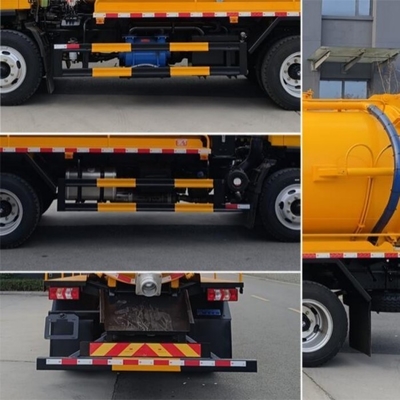

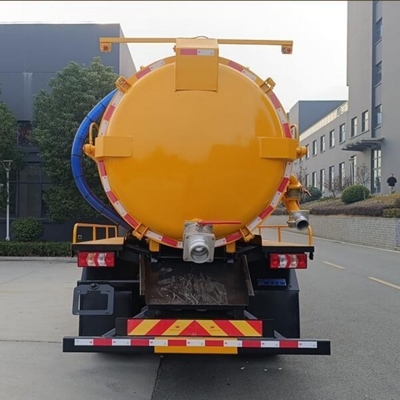

Side/rear tank appearance.
Air reservoir, urea tank positions.
Cab with chassis, anti-overflow valve style.
| Item | ZBJ5140GXW6BHQ |
| Energy type | Diesel |
| Dimension(L x W x H) | 6870,7010×2360×3150,3220(mm) |
| Chassis | EQ1145SJ8CDC |
| Engine | D3.0NS6B210H |
| Curb Weight | 7380(Kg) |
| Rated Loading | 6485(Kg) |
| Total Mass | 14060(Kg) |
| Maximum Speed | 120(km/h) |
| App./Dep.Angle | 21/13(°) |
| Front / Rear suspension | 1180/1890,1317/1893(mm) |
| Axle Load | 4860/9200kg |
| Tank Volume | 8100L |
| Optional Configurations |
Intelligent Monitoring System |
| Multilingual Control Panel | |
| Anti-Overflow Alarm Device | |
| Quick-Connect Fittings & Multi-Size Suction Hoses | |
| Hydraulic Drive System | |
| Self-Cleaning Flushing System | |
| Overload Protection Device | |
| Anti-overflow Valve | |
|
Anti-UV Thermal Insulation Coating |
| High-Efficiency Cooling System | |
| Moisture-Resistant Electrical Components | |
| Corrosion-Resistant Sealing Gaskets | |
| High-Flow Cooling Water Pump | |
|
Tank Thermal Insulation Layer |
| Engine Preheating System | |
| Battery Heater | |
| Anti-Freeze Vacuum Pump Oil | |
| Suction Hose Heating Tape | |
| Low-Temperature-Resistant Rubber Parts | |
| Drain Valve Heat Tracing System |
