Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5180GXWAHA |
| MOQ: | 1 Piece |
| Price: | 6355-7695usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
Total Weight: 18000Kg, stable for sewage suction.
Size: 8250, 8050×2500×3450mm, fits urban/suburban sewage cleaning.
Power: 259hp, strong for efficient work.
Load Capacity: 9570, 9505Kg, handles large liquid waste.
Total volume: 12.47m³; effective: 11.88m³ (liquid waste, density 800kg/m³).
Tank dimensions (straight section × diameter): 4800×1800mm, liftable for discharge.
ABS: Optional J ABS (Jiaozuo Borui Ke) and ABS/ASR-24V-4S/4M4 (Xiangyang Dongfeng Longcheng).

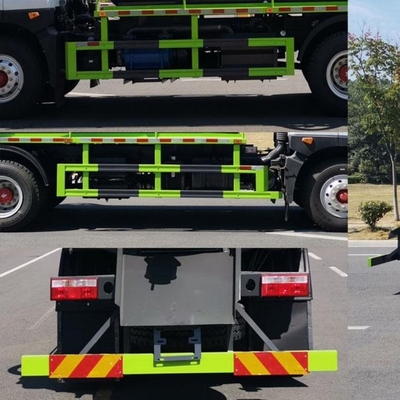

Protection: Q235A material. Side (welded + bolted); rear (welded, 120×55mm section, 430mm off ground).

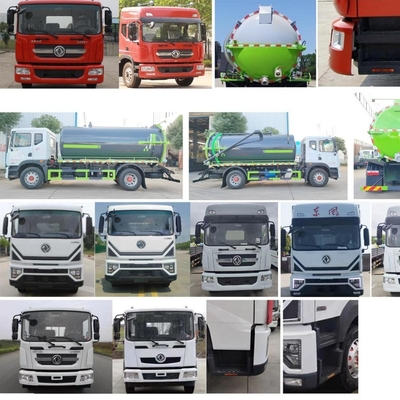

Cab/pedal styles, speed limiter (89km/h), exhaust pipe position (with chassis).
Water pump position, rear head lock, ladder, tank shape.
| Item | ZBJ5180GXWAHA |
| Energy type | Diesel |
| Dimension(L x W x H) | 8250,8050×2500×3450(mm) |
| Chassis | EQ1185LJ9CDE |
| Engine | B6.2NS6B260 |
| Curb Weight | 8300(Kg) |
| Rated Loading | 9570,9505(Kg) |
| Total Mass | 18000(Kg) |
| Maximum Speed | 89,105(km/h) |
| App./Dep.Angle | 19/13,19/15(°) |
| Front / Rear suspension | 1260/2490,1450/2300,1260/2290,1450/2100,1420/2330,1420/2130(mm) |
| Axle Load | 6500/11500kg |
| Tank Volume | 11880L |
| Optional Configurations |
Intelligent Monitoring System |
| Multilingual Control Panel | |
| Anti-Overflow Alarm Device | |
| Quick-Connect Fittings & Multi-Size Suction Hoses | |
| Hydraulic Drive System | |
| Self-Cleaning Flushing System | |
| Overload Protection Device | |
| Anti-overflow Valve | |
|
Anti-UV Thermal Insulation Coating |
| High-Efficiency Cooling System | |
| Moisture-Resistant Electrical Components | |
| Corrosion-Resistant Sealing Gaskets | |
| High-Flow Cooling Water Pump | |
|
Tank Thermal Insulation Layer |
| Engine Preheating System | |
| Battery Heater | |
| Anti-Freeze Vacuum Pump Oil | |
| Suction Hose Heating Tape | |
| Low-Temperature-Resistant Rubber Parts | |
| Drain Valve Heat Tracing System |
