Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5040TYHCKBEV |
| MOQ: | 1 Piece |
| Price: | 2995-3780 usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |
4.5tons 2m³ pure electric roadside assistance Service Road Maintenance Truck
Total Mass: 4495kg
Loading Capacity: 1675kg
Energy storage: Lithium iron phosphate battery (CATL, cell and assembly by CATL).
Motor: Permanent magnet synchronous motor, model TZ210XS103 . Rated power 60kW, peak power 130kW.
Side and rear protections: Replaced by vehicle body structure, material Q355B.
Rear protection height above ground: 495mm.
Logo styles (with chassis); front logo can be omitted.
Right corner spray, arrow indicator lights, rear upper spray, rear lower spray.
Arrow indicator lights (only lit during operation). Optional configurations have negligible impact on vehicle weight.
| Item | ZBJ5040TYHCKBEV |
| Energy type | Pure electric |
| Dimension(L x W x H) | 5855×1835×2290(mm) |
| Chassis | CKS1040D5BD61BEV |
| Engine | TZ210XS103 |
| Secondary Engine | — |
| Curb Weight | 2690(Kg) |
| Rated Loading | 1675(Kg) |
| Total Mass | 4495(Kg) |
| Max.Speed | 80(km/h) |
| Front/Rear suspension | 1195/1400(mm) |
| Tank Volum | 2.5 cubic meters |

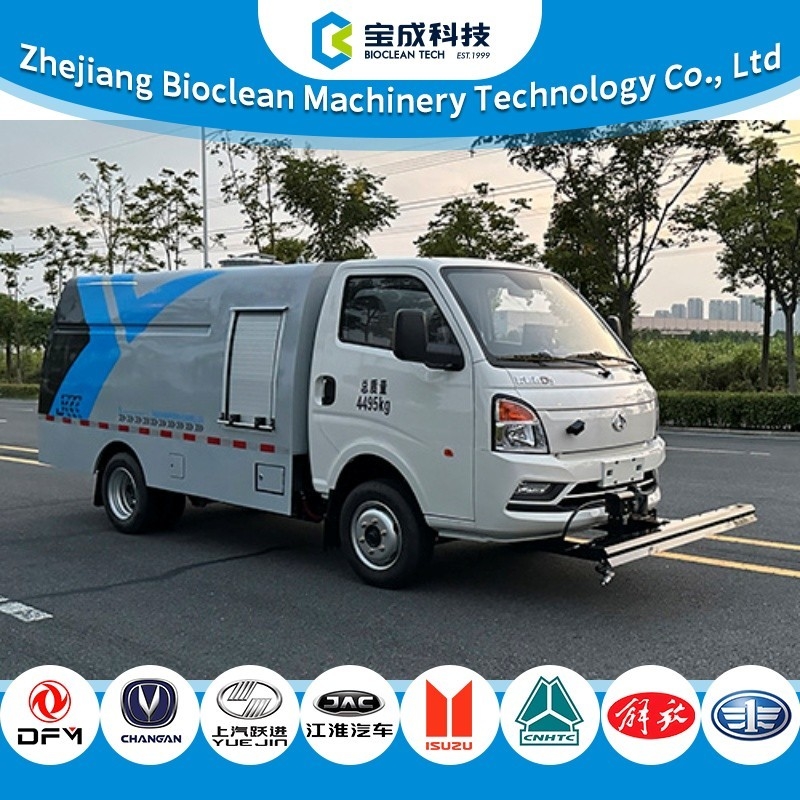

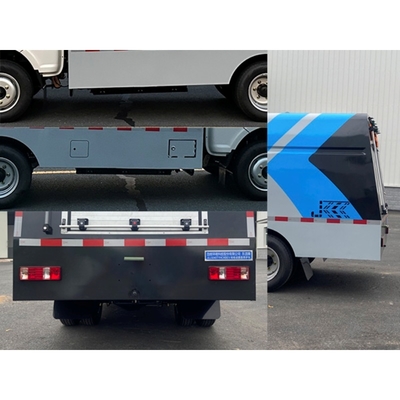

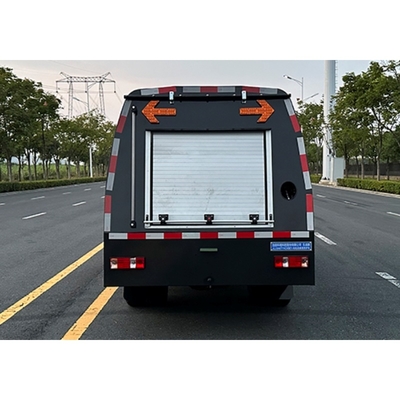

Actual photos
|
|
