4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box

4495KG 2.1m3 Pure Electric Road Maintenance Truck Equipped With A Box

Brand Name:	Bioclean
Model Number:	ZBJ5040TYHDFBEV
MOQ:	1 Piece
Price:	5690-6135usd
Payment Terms:	T/T
Supply Ability:	5,000 units per year

Detail Information

Product Description

Detail Information

Place of Origin:

Ningbo, China

Certification:

CE/ISO 9001/EPA/UL/SASO/ECAS/ Certification

Dimension(L X W X H):

5440×1780,1715×2060,2220(mm)

Chassis:

EQ1041TACEV4

Weight:

4495(Kg)

Load Capacity:

1645,1685,1585(Kg)

Chassis Total Capacity:

2720,2680,2780(Kg)

Maximum Speed:

80(km/h)

Front/Rear Suspension:

1176/1100(mm)

Engine:

TZ215XS070

Axle Load:

1500/2995

Tyre Size:

185R15LT 8PR

Packaging Details:

Wooden Case /Iron Frame/Container/SKD /CKD

Supply Ability:

5,000 units per year

Highlight:

4495KG Road Maintenance Truck

2.1m3 Road Maintenance Truck

4495KG Road Repair Vehicle

Product Description

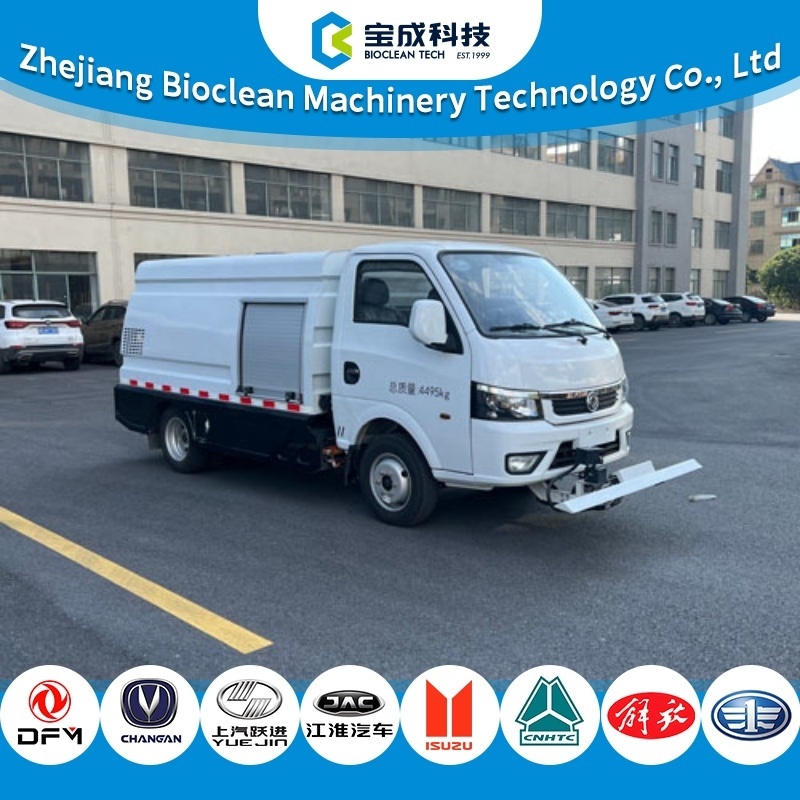

4495KG 2.1m³ pure electric roadside assistance Service Road Maintenance Truck

Total Mass: 4495kg

Loading Capacity: 1645kg, 1685kg, 1585kg

Main Use & Key Devices

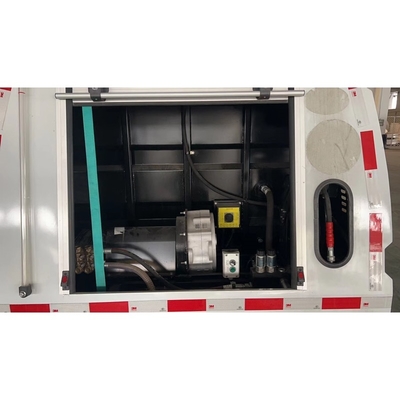

Used for cleaning and maintaining urban roads, sidewalks, guardrails, curbs, etc. Equipped with a box, water system and front water spray frame.

Power & Energy

Energy storage: Lithium iron phosphate battery (CATL, cell and assembly by CATL).

Drive motor: Rated power 40kW, peak power 70kW.

Dimensions

Overall length: 5440mm (including 364mm front overhang).

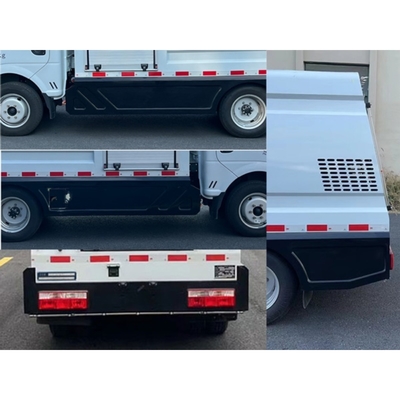

Safety Protections

Side protection: Replaced by side skirt (Q235B), bolted.

Rear protection: Replaced by rear skirt (Q235B), bolted. Size 245×30mm, 460mm above ground.

ABS System

Model: RL-108

Optional Configurations

ETC device; rear arrow lights (only on during work).

With/without rear upper spray, with/without rear lower spray, 360° camera, internal pipelines.

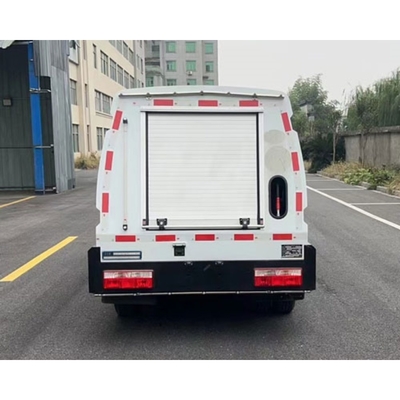

Roller shutter lower trim, box internal structure, B-type rear lower spray device, top cover.

Side guards, wheel fenders, rear logo look, left/right corner sprays.

Uses

Suitable for urban road maintenance. Flexible options meet various work needs.

parameters

Item	ZBJ5040TYHDFBEV
Energy type	Pure electric
Dimension(L x W x H)	5440×1780,1715×2060,2220(mm)
Chassis	EQ1041TACEV4
Engine	TZ215XS070
Secondary Engine	—
Curb Weight	2720,2680,2780(Kg)
Rated Loading	1645,1685,1585(Kg)
Total Mass	4495(Kg)
Max.Speed	80(km/h)
Front/Rear suspension	1176/1100(mm)
Tank Volum	1.2-1.5 cubic meters
