Zhejiang Bioclean Machinery Technology Co., Ltd
|
| Brand Name: | Bioclean |
| Model Number: | ZBJ5047TYHZZ6CS |
| MOQ: | 1 Piece |
| Price: | 5785-6250usd |
| Payment Terms: | T/T |
| Supply Ability: | 5,000 units per year |

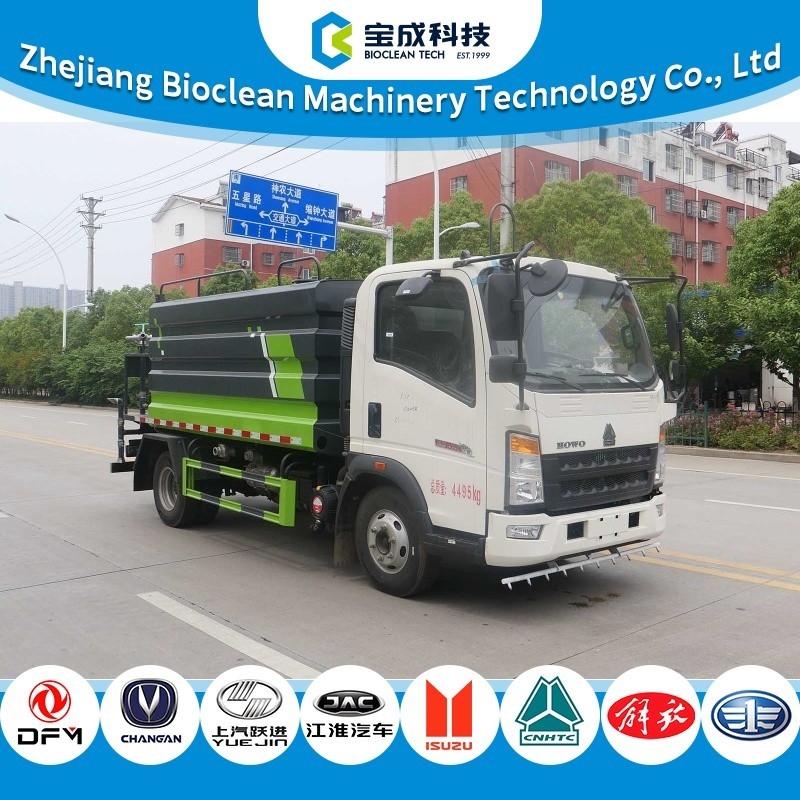

4.5tons 2100L diesel roadside assistance Service Road Maintenance Truck
Total Mass: 4495kg
Loading Capacity: 3800kg
Wheelbase options: 2800mm, 3280mm, 3600mm.
Overall length/wheelbase/front overhang/rear overhang (mm) options: 5995/3280/1160(1180)/1555(1535), 5995/3600/1160(1180)/1235(1215), 5780/1160/2800/1820.
Side guards: Q235 material, connected by bolts or welding.
Rear lower guards: Q235 material, connected by welding or bolts. Section size (width×height): 60×120mm or 50×120mm; ground clearance: 360mm or 400mm.
Speed limiter (80km/h), appearance styles.
Cab, fuel tank, battery, urea tank, air tank left/right positions (with chassis).
Aluminum alloy rims, bumper styles.
| Item | ZBJ5047TYHZZ6CS |
| Energy type | Diesel |
| Dimension(L x W x H) | 5780,5995×2200,2250,2300×3000(mm) |
| Chassis | ZZ1047H3315F145Z |
| Engine | WP4.1NQ190E61 |
| Secondary Engine | YCY30165-60 |
| Curb Weight | 3800(Kg) |
| Rated Loading | 500,565(Kg) |
| Total Mass | 4495(Kg) |
| Max.Speed | 80,95(km/h) |
| Front/Rear suspension | 1160/1555,1180/1535,1160/1235,1180/1215,1160/1820(mm) |
| Tank Volum | 8 cubic meters |

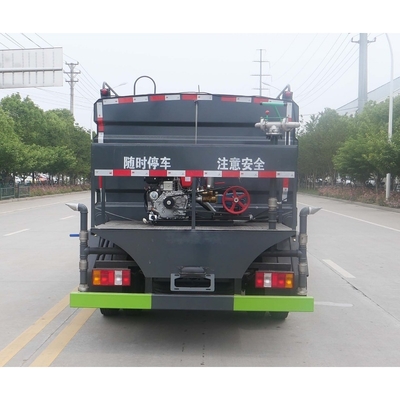

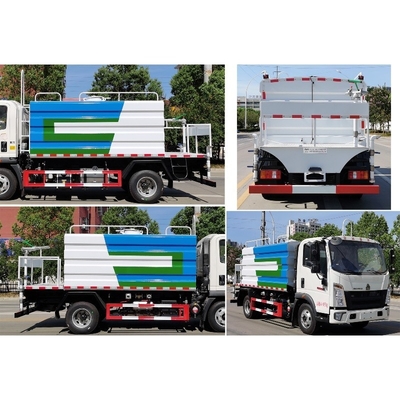

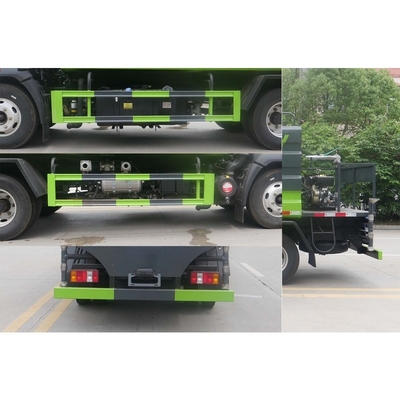

Actual photos
